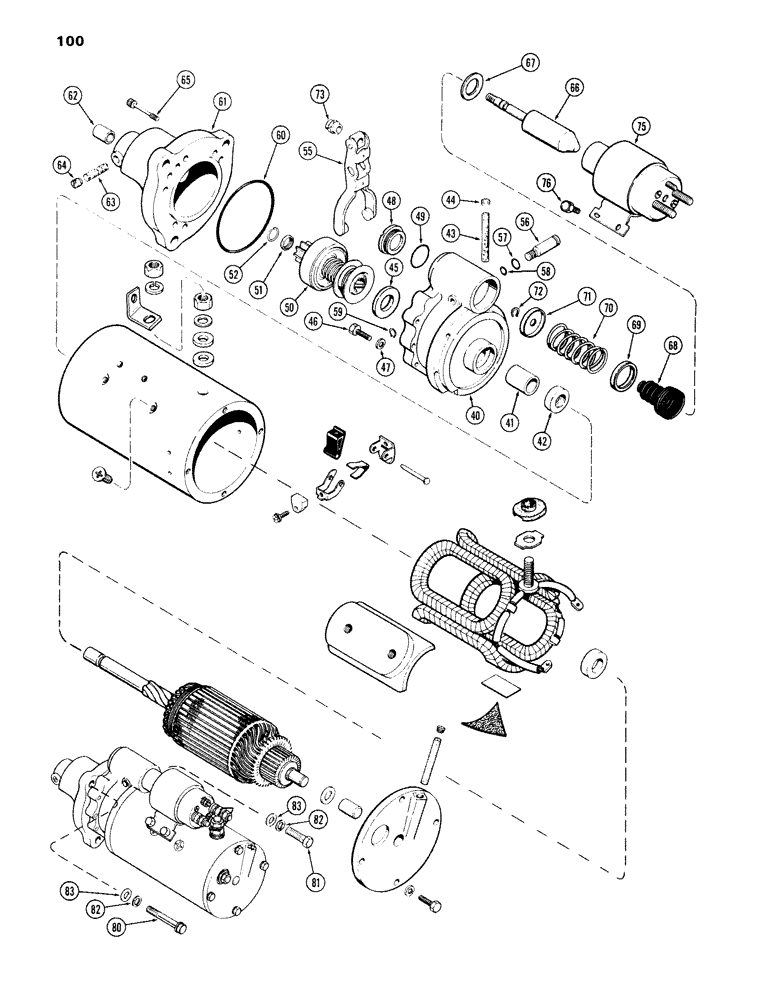

Запчасти Case IH 336BDT (100) - STARTING MOTOR, 12 VOLT, F

A64906

MOTOR

STARTER ASSY. - (Continued from Pg. 99)

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

40

A43859

HOUSING

HOUSING ASSY. - shift lever

1шт.

41

A40944

BUSHING

BUSHING - housing

1шт.

42

A25407

OIL SEAL

SEAL - oil

1шт.

43

A41417

WICK

WICK - oil

1шт.

44

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

45

R15043

WASHER

WASHER - brake, 25/32 x 2 x 3/32"

1шт.

46

D32484

SCREW,Hex, 1/4" - 28 x 1"

BOLT - lever housing

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

PLUG - inspection

1шт.

49

A41924

GASKET

GASKET - plug

1шт.

50

A41550

DRIVE

DRIVE ASSY. - starter

1шт.

51

R15049

COLLAR

COLLAR - pinion drive end stop

1шт.

52

R15048

RING

RING - snap, pinion stop

1шт.

55

A43852

LEVER

LEVER - shift

1шт.

56

A43851

SHAFT

SHAFT - shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - 23/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - 15/64 x 25/64 x 1/16"

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retainer #37, Ext

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

"O" RING - lever housing to drive housing

1шт.

61

A43858

HOUSING

HOUSING ASSY. - drive

1шт.

62

A40868

BUSHING

BUSHING - housing

1шт.

63

R15023

WICK

WICK - oil

1шт.

64

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - 1/4 x 7/8" N.F. sckt. hd., cap

6шт.

66

A43857

PLUNGER

PLUNGER - solenoid

1шт.

67

A41922

WASHER

WASHER - 53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

BOOT - plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, w/1-13/64" hole

1шт.

70

A41242

SPRING

SPRING - shift lever return

1шт.

71

A43419

SEAT

RETAINER - spring, w/13/32" hole

1шт.

72

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever pin #37, Ext

1шт.

73

A43856

NUT

NUT - adjusting, plunger rod guide

1шт.

75

A43862

SPARE PART SOLENOID ASSY. - (See Page 107)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

BOLT - 1/4 x 23/64" N.C. hex.

4шт.

80

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. hex.

1шт.

81

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - 1/2 x 1-3/4" N.C. hex.

2шт.

82

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

83

L30674

WASHER

WASHER - 17/32 x 1 x 1/8"

3шт.
