Запчасти Case IH 336BDT (098) - STARTING MOTOR, 12 VOLT, F

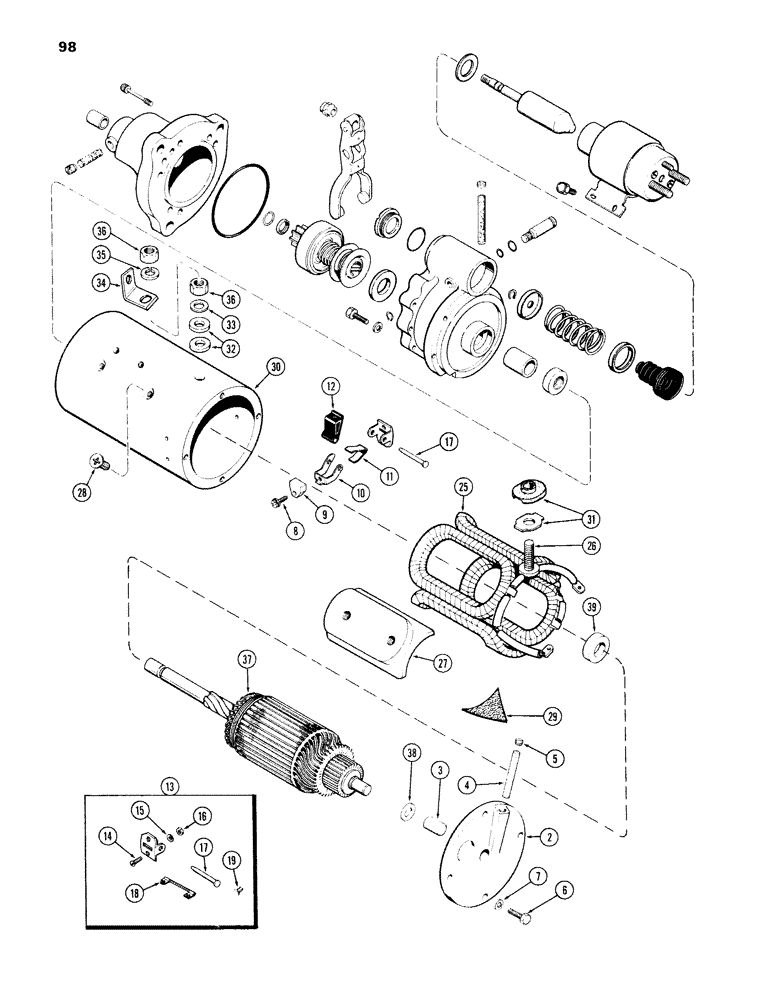

Схема запчастей Case IH 336BDT - (098) - STARTING MOTOR, 12 VOLT, F
27
36
10
4
13
35
30
17
18
26
6
16
5
2
17
11
31
12
8
36
29
15
32
19
25
9
3
38
34
37
28
33
7
39
14

Артикул

Название

Примечание

Количество

A64906

MOTOR

STARTER ASSY. - (Delco #1113405) 12 volt

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Part Number

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Part Number

1шт.

2

NLS

NO LONGER SERVICED

FRAME ASSY. - commutator end

1шт.

3

A42323

BUSHING

BUSHING - frame

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

6

D32484

SCREW,Hex, 1/4" - 28 x 1"

BOLT - commutator end frame

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

9

A20897

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

10

A40217

HOLDER

HOLDER - ground brush

2шт.

11

R15025

SPRING

SPRING - brush

4шт.

12

R21590

HOLDER

HOLDER - insulated, brush

2шт.

13

R15029

BRUSH

KIT - brush holder replacement

1шт.

14

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10 x 3/4" N.F. Truss hd.

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

R15032

X

NUT - support

2шт.

17

R15035

PIN

PIN - brush holder

1шт.

18

R15030

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

19

47-310

RIVET,FH, 3/16" x 5/8"

RIVET - 1/4 x 5/8" flat hd.

2шт.

25

A43860

COIL

FIELD COIL ASSY. - (4 coils)

1шт.

26

A40896

STUD

STUD - 1/2" N.C. x 2-1/8" spec.

1шт.

27

R15115

SHOE

SHOE - pole

4шт.

28

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - 3/8 x 3/16" N.F. pan hd., Phillips

8шт.

29

A41977

RUBBER INSULATOR

INSULATION - field coil

2шт.

30

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

31

A41925

BUSHING

BUSHING PACKAGE - field terminal stud

1шт.

32

D30005

INSULATOR

WASHER - 33/64 x 1 x 3/32" insulating

2шт.

33

A42404

X

WASHER - 33/64 x 7/8 x 1/32"

1шт.

34

A43863

ROD, CONNECTING

CONNECTOR - solenoid

1шт.

35

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

36

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

37

A43855

ARMATURE

ARMATURE - starter

1шт.

38

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

39

A43853

BUSHING

SPACER - armature, drive end

1шт.

Выбрано товаров: 40
