Запчасти Case IH 336BDT (096) - FLYWHEEL HOUSING, NUMBER THREE S.A.E., D

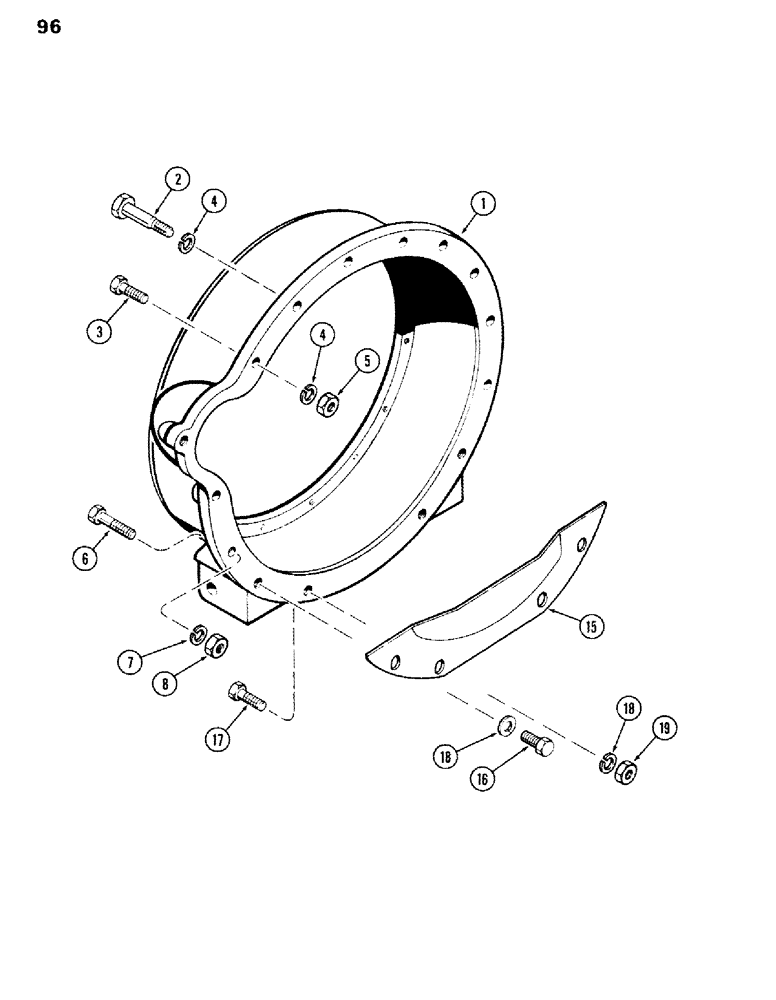

Схема запчастей Case IH 336BDT - (096) - FLYWHEEL HOUSING, NUMBER THREE S.A.E., D
8
6
18
18
5
4
7
3
4
1
19
15
17
2
16

Артикул

Название

Примечание

Количество

1

A65683

HOUSING

- flywheel

1шт.

2

A61040

STEP BOLT

BOLT - 1/2 x 3" N.C. hex., shoulder

1шт.

2

A61041

STEP BOLT

BOLT - 1/2 x 2-7/16" N.C. hex., shoulder

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 3/4 x 3" N.C., 12 pt. hd.

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

15

A58931

GUARD

SHIELD - dust

1шт.

16

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 x 3/4" N.C. hex.

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

Выбрано товаров: 15
