Запчасти Case IH 336BDT (074) - TIMING GEAR COVER, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

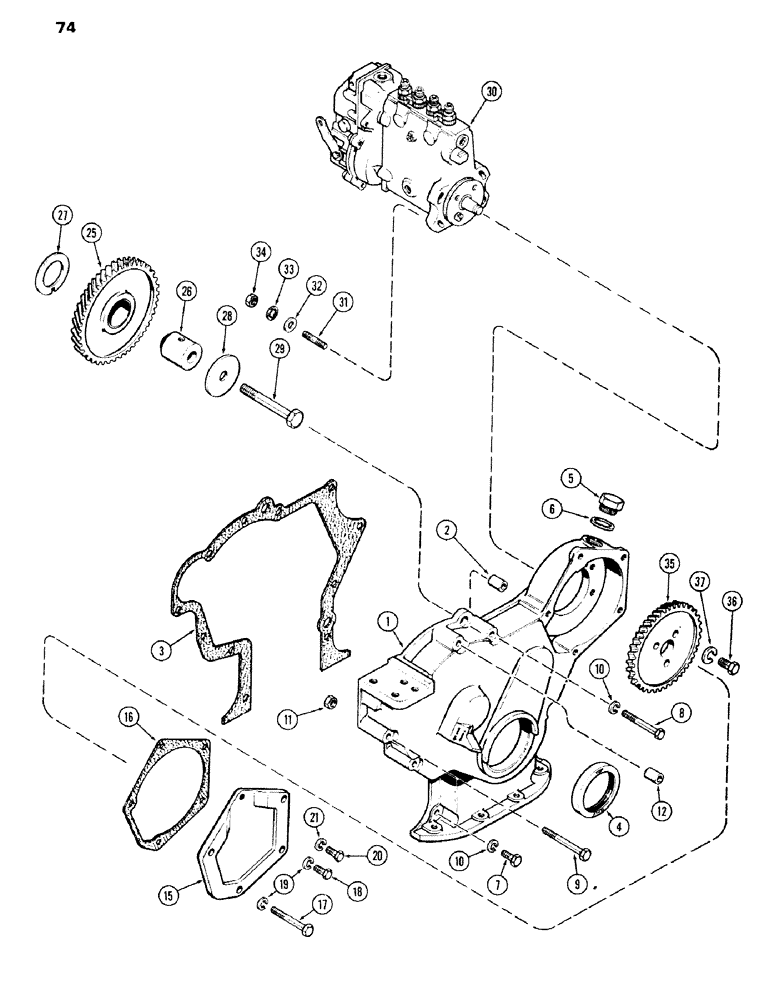

Схема запчастей Case IH 336BDT - (074) - TIMING GEAR COVER, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
20
30
6
10
9
10
1
3
36
11
21
35
12
27
28
37
17
31
2
16
8
18
4
25
5
26
19
7
15
32
29
33
34

Артикул

Название

Примечание

Количество

1

A58609

COVER

ASSY, timing gear

1шт.

2

A58611

PIN

DOWEL - cover

2шт.

3

A58612

GASKET

, Serial Range: Cover-block

1шт.

4

A62049

OIL SEAL

Crankshaft, front

1шт.

5

A21140

PLUG

Timing window

1шт.

6

A58613

SEALING WASHER

Timing window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

Hex

2шт.

12

A19774

BUSHING

SPACER - alternator pry point

1шт.

15

A61053

COVER

Fuel pump gear

1шт.

16

A58615

GASKET

Fuel pump gear cover

1шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

25

A62542

GEAR

ASSY, idler

1шт.

26

A58690

SHAFT

Idler gear

1шт.

27

A58691

WASHER

Thrust, idler shaft

1шт.

28

A58692

PLATE

Thrust, idler shaft

1шт.

29

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

30

REF

INSTRUCTION

PUMP ASSY, fuel injection (See P. 85)

1шт.

31

A58689

STUD

3/8" N.C. x 1-7/8"

4шт.

32

A57470

WASHER

13/32 x 11/16 x 16 ga.

4шт.

33

192-30

WASHER - Shakeproof, 3/8" int.

4шт.

34

25-106

NUT,3/8"-16, G5

Hex

4шт.

35

A58693

GEAR

Injection pump, 48 teeth

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

3шт.

Выбрано товаров: 33
