Запчасти Case IH 336BDT (070) - FUEL INJECTION FILTER SYSTEM, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

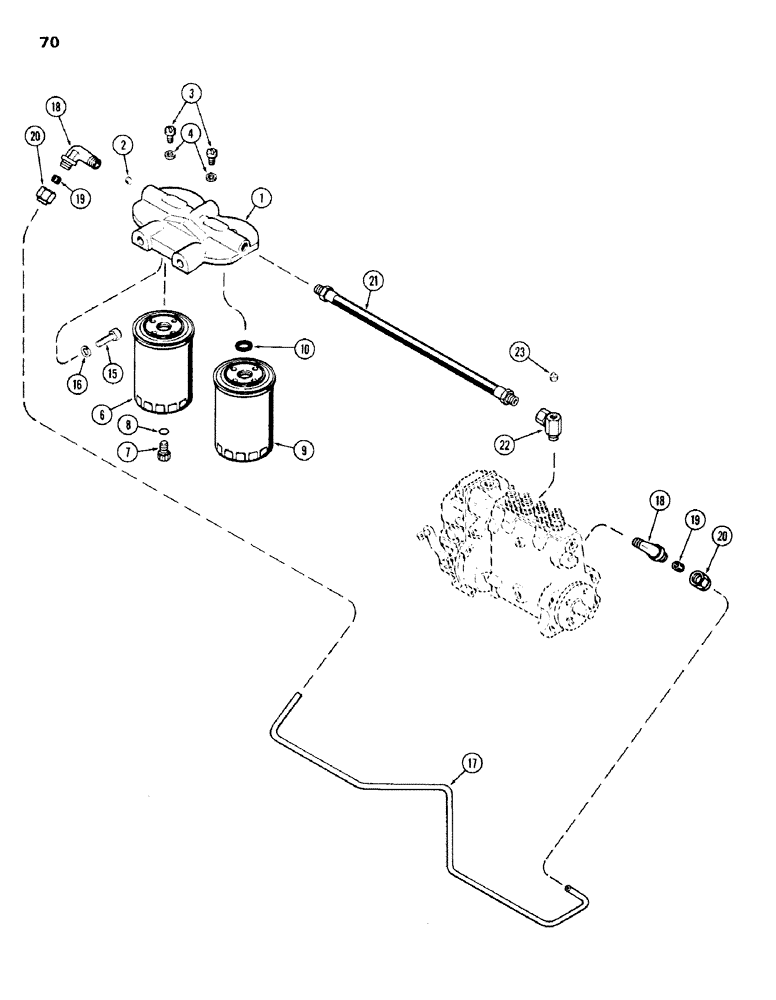

Схема запчастей Case IH 336BDT - (070) - FUEL INJECTION FILTER SYSTEM, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
22
18
10
21
16
18
8
2
19
15
17
20
20
23
19
7
4
3
6
1
9

Артикул

Название

Примечание

Количество

A62347

FILTER

ASSY. - 1st & 2nd stage

1шт.

1

A62339

HEAD

ASSY. - filter mounting

1шт.

2

221-41

PLUG

- 1/8" P.T. sckt. hd.

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

A41745

KIT

ELEMENT KIT - filter

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage

1шт.

7

G49080

PLUG

- drain

1шт.

8

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage

1шт.

10

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62341

TUBE

- pump to 1st filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T.

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

21

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

Выбрано товаров: 20
