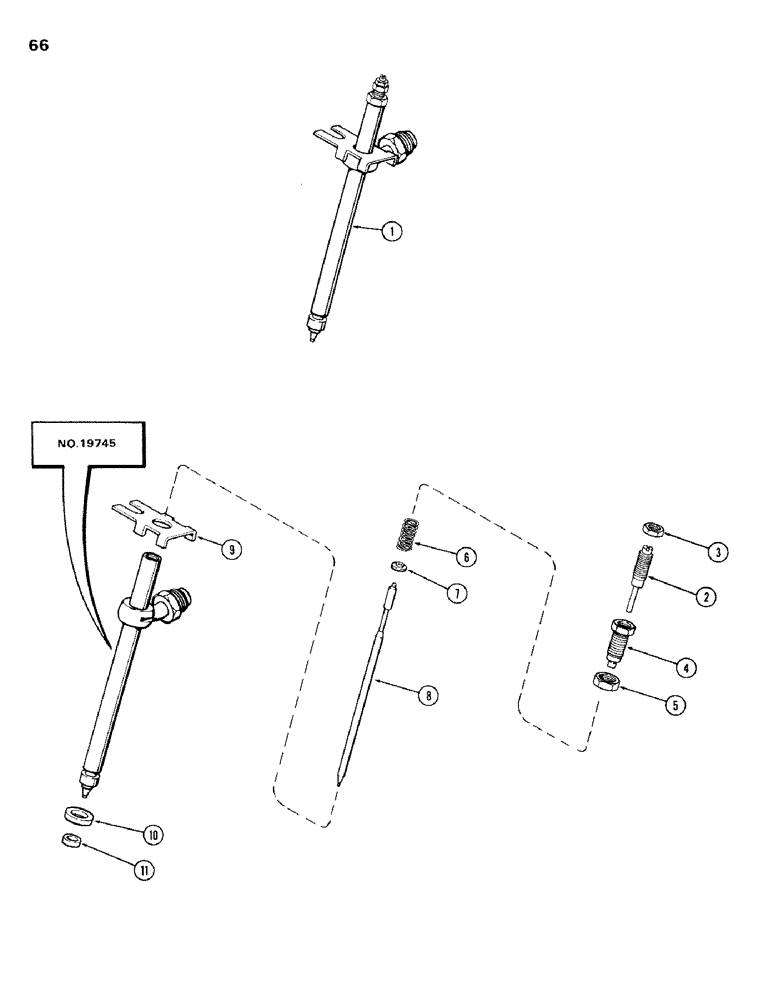

Запчасти Case IH 336BDT (066) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

1

A62809

NOZZLE CAP

NOZZLE ASSY. - injection (Supplier's #19745 stamped on body, coded red) (See Note)

4шт.

A138322R

REMAN-INJECT NOZZLE

336BDT 4-CYL. DIESEL REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- #10-56 hex, lock, lift adj.

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- 5/16" - 48 hex. lock, press. adj.

1шт.

6

A43601

SPRING

- pressure adjusting

1шт.

7

A44369

SEAT

- spring

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
