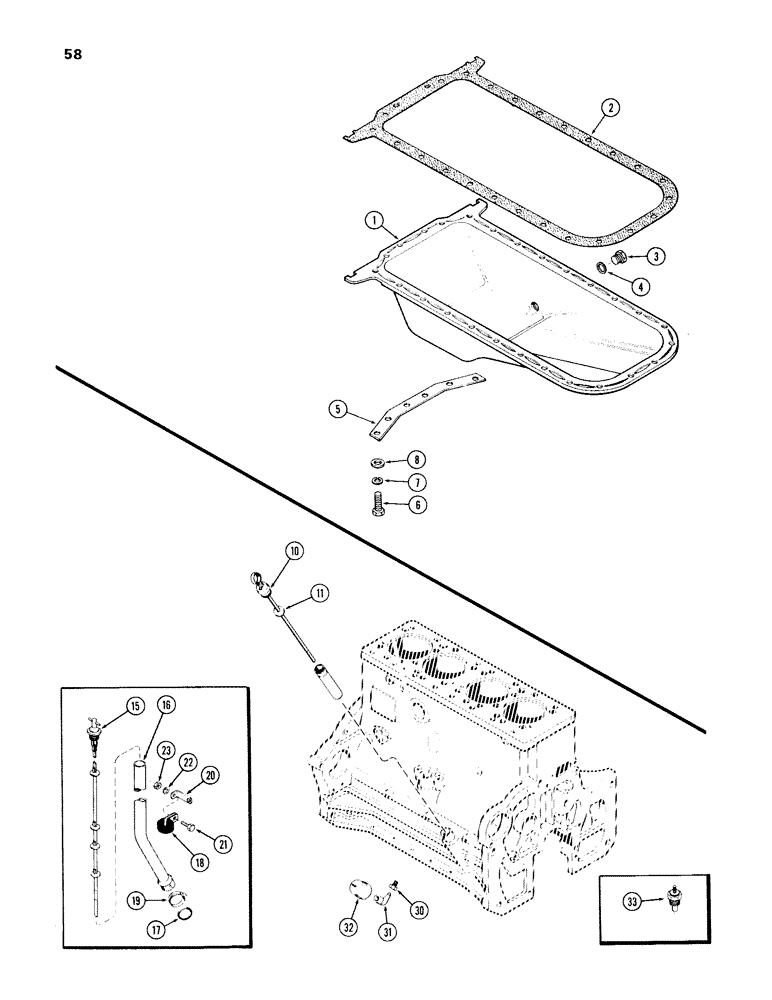

Запчасти Case IH 336BDT (058) - OIL PAN, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

1

A59140

PAN

- oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Gasket Kit A42221) (See Figure 080)

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- oil pan drain

1шт.

4

A58933

OIL PAN GASKET SET

- plug

1шт.

5

A58932

STRAP

- pan reinforcement

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

7

92-6

LOCK WASHER,3/8"

24шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

24шт.

10

A34541

DIPSTICK

- oil level

1шт.

11

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

15

A66173

DIPSTICK

- oil level

1шт.

16

A65119

TUBE

EXTENSION - dipstick

1шт.

17

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - extension

1шт.

18

D39138

CLAMP

- extension

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

20

A65120

BRACKET

- extension

1шт.

21

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-104

NUT,1/4"-20, G5

1шт.

30

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducer, 3/8 to 1/8"

1шт.

31

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

32

A35031

SENDER UNIT

UNIT - engine oil pressure sending

1шт.

33

A61787

TRANSMITTER

UNIT - engine temperature sending (in water manifold)

1шт.
