Запчасти Case IH 336BDT (054) - OIL FILTER AND HEAT EXCHANGER, ENGINE LESS FUEL DEVICE, TURBOCHARGED ENGINES

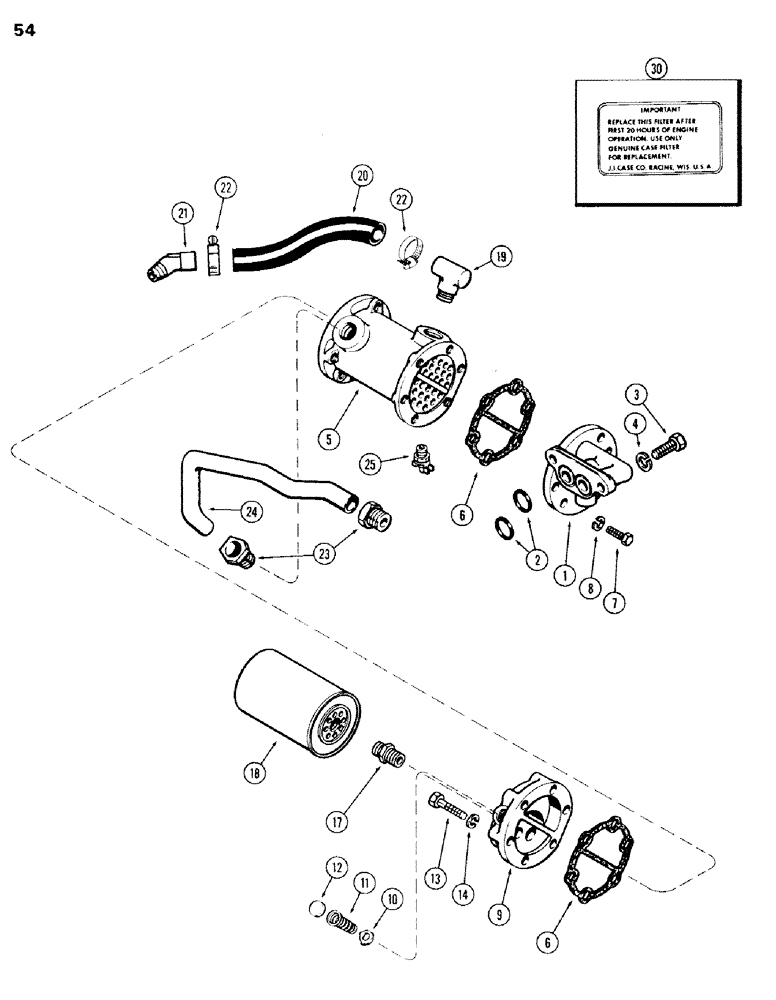

Схема запчастей Case IH 336BDT - (054) - OIL FILTER AND HEAT EXCHANGER, ENGINE LESS FUEL DEVICE, TURBOCHARGED ENGINES
8
25
22
14
20
5
6
12
13
22
21
2
1
9
6
11
30
3
10
17
19
24
23
18
7
4

Артикул

Название

Примечание

Количество

1

A61244

BASE

- heat exchanger

1шт.

2

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - 15/16 x 1-1/8 x 3/32"

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A61245

COOLER

EXCHANGER - heat, lube oil

1шт.

6

A64367

GASKET

- heat exchanger

2шт.

7

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

A61902

VALVE

BODY ASSY. - oil fltr. & heat exch.

1шт.

10

A58754

VALVE

- relief

1шт.

11

A58755

FILTER

SPRING - relief valve

1шт.

12

41-1016

PLUG,Cup, 1"

- 1" cup

1шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

6шт.

17

A58757

ADAPTER

-, Serial Range: filter-body

1шт.

18

A58758

FILTER, ELEMENT

FILTER - lube oil

1шт.

19

217-128

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

ELBOW - 3/4" P.T., 3/4" hose x 90 degrees

1шт.

20

A59223

HOSE

-, Serial Range: exchanger-block

1шт.

21

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 3/4" P.T., 3/4" hose x 45 degrees

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

2шт.

23

222-1618

HYD CONNECTOR,Flareless, 1 3/16"-12 Tube x 3/4" NPT

CONNECTOR - 3/4" P.T., 7/8" tube

2шт.

24

A61976

TUBE

- exchanger to water pump

1шт.

25

A23656

COCK, DRAIN

VALVE - drain cock

1шт.

30

321-367

DECAL

- oil filter

1шт.

Выбрано товаров: 26
