Запчасти Case IH 336BDT (046) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 301BD NATURALLY ASPIRATED ENGINES

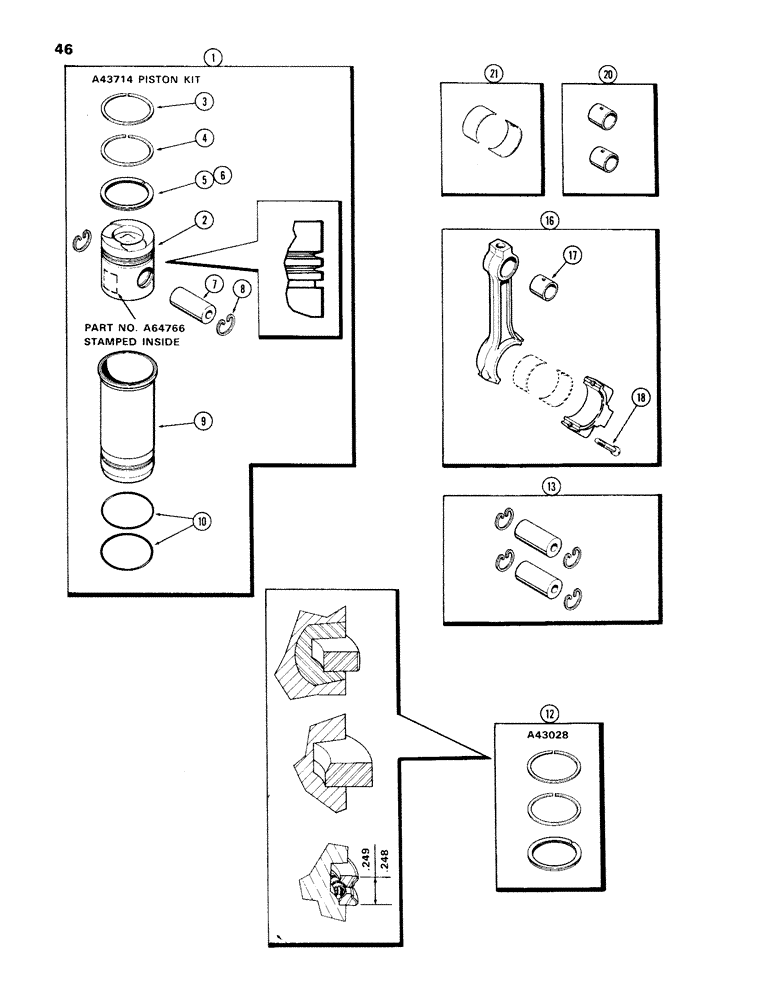

Схема запчастей Case IH 336BDT - (046) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 301BD NATURALLY ASPIRATED ENGINES
18
12
21
1
6
5
8
16
2
13
9
17
20
10
7
4
3

Артикул

Название

Примечание

Количество

1

A43714

KIT

PISTON & SLEEVE KIT - (Set of 2)

2шт.

2

A64766

PISTON

- cylinder, 4-3/8" dia.

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control (bottom groove) (Order ref. 12)

4шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - oil control (bottom groove) (Order ref. 12)

2шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

2шт.

8

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

9

A59093

SLEEVE

- piston (cylinder liner)

2шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

A43031

KIT

RING KIT - re-ring (Set of 4)

1шт.

12

A43028

RING, SET

RING KIT - re-ring (Set of 1)

4шт.

13

A21725

KIT

PIN KIT - w/retaining rings (Set of 2)

2шт.

16

A62952

ROD

ASSY. - connecting

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A62184

STEP BOLT

BOLT - connecting rod cap

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A43173

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

4шт.

21

A43174

BEARING LINER

INSERT KIT - connecting rod (-.002")

4шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod (-.010")

4шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod (-.020")

4шт.

21

A43177

BEARING LINER

INSERT KIT - connecting rod (-.030")

4шт.

Выбрано товаров: 22
