Запчасти Case IH 336BDT (042) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

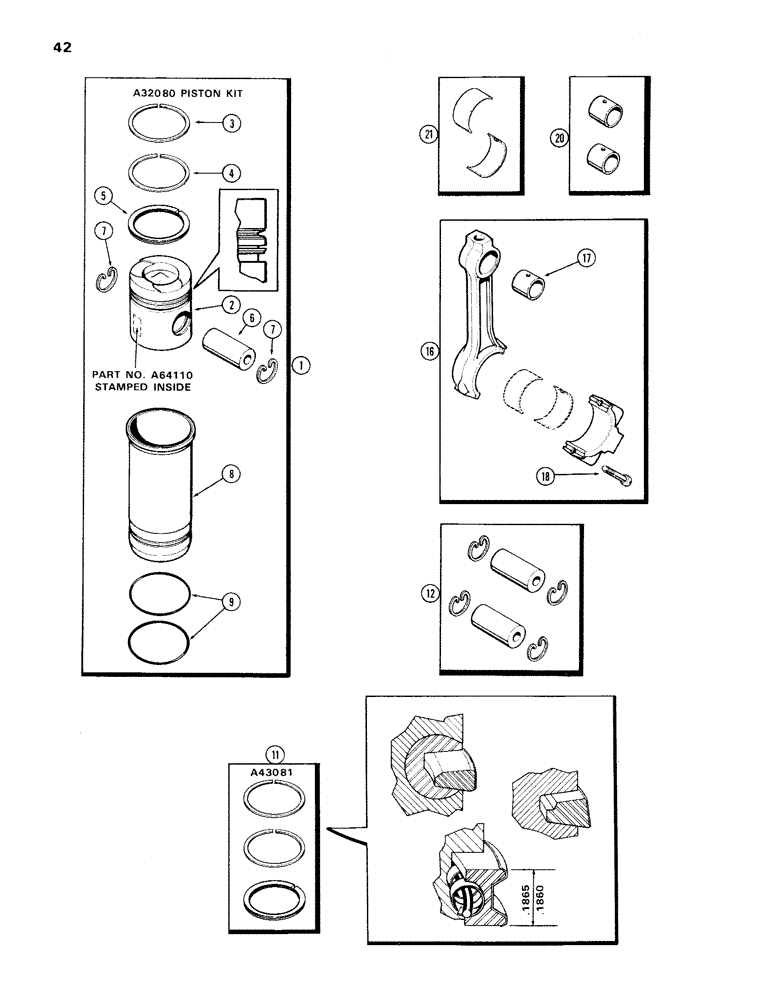

Схема запчастей Case IH 336BDT - (042) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
17
6
9
8
12
3
16
7
11
20
21
1
2
4
7
5
18

Артикул

Название

Примечание

Количество

1

A43080

SLEEVE

PISTON & SLEEVE KIT - (Set of 2)

2шт.

2

A64110

PISTON

- cylinder, 4-5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

2шт.

A43117

RING

KIT - re-ring (Set of 4)

1шт.

11

A43081

RING

KIT - re-ring (Set of 1)

4шт.

12

A41750

PIN

KIT - w/retaining rings (Set of 2)

2шт.

16

A65032

ROD

ASSY. - connecting

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A62184

STEP BOLT

BOLT - connecting rod cap

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

4шт.

21

A41899

BEARING LINER

INSERT KIT - connecting rod (-.002")

4шт.

21

A41900

BEARING LINER

INSERT KIT - connecting rod (-.010")

4шт.

21

A41901

BEARING LINER

INSERT KIT - connecting rod (-.020")

4шт.

21

A41902

BEARING LINER

INSERT KIT - connecting rod (-.030")

4шт.

Выбрано товаров: 21
