Запчасти Case IH 336BDT (034) - CRANKSHAFT, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES WITHOUT SPLINE

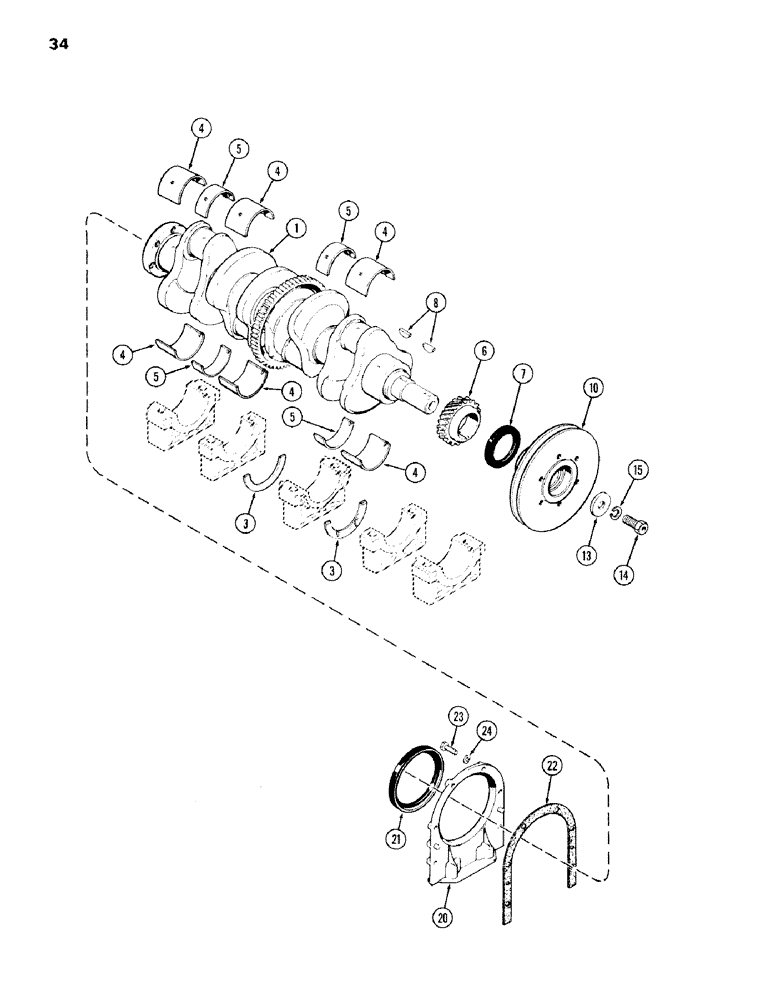

Схема запчастей Case IH 336BDT - (034) - CRANKSHAFT, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES WITHOUT SPLINE
13
3
4
24
1
4
10
14
5
3
5
6
21
7
20
22
4
4
4
8
5
23
4
15
5

Артикул

Название

Примечание

Количество

1

A65108

CRANKSHAFT - engine

1шт.

3

A58565

WASHER

- thrust, crankshaft (Std.) (.156" thick)

2шт.

3

A42447

WASHER

- thrust, crankshaft (.162" thick)

2шт.

4

A43090

BEARING LINER

LINER KIT - main bearing, wide (Std.)

3шт.

4

A43124

LINING

LINER KIT - main bearing, wide (-.002")

3шт.

4

A43125

CRANKSHAFT BEARING

LINER KIT - main bearing, wide (-.010")

3шт.

4

A43126

LINING

LINER KIT - main bearing, wide (-.020")

3шт.

4

A43127

LINING

LINER KIT - main bearing, wide (-.030")

3шт.

5

A43089

BEARING LINER

LINER KIT - main bearing, narrow (Std.)

2шт.

5

A43120

LINING

LINER KIT - main bearing, narrow (-.002")

2шт.

5

A43121

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (-.010")

2шт.

5

A43122

LINING

LINER KIT - main bearing, narrow (-.020")

2шт.

5

A43123

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (-.030")

2шт.

6

A58573

GEAR

- crankshaft

1шт.

7

A62049

OIL SEAL

- crankshaft front

1шт.

8

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

10

A58746

PULLEY - crankshaft single

1шт.

13

A27903

WASHER

- pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

Выбрано товаров: 25
