Запчасти Case IH 336BD (080) - ENGINE GASKET KITS, ENGINE LESS FUEL DEVICE, 336BD NATURALLY ASPIRATED ENGINES

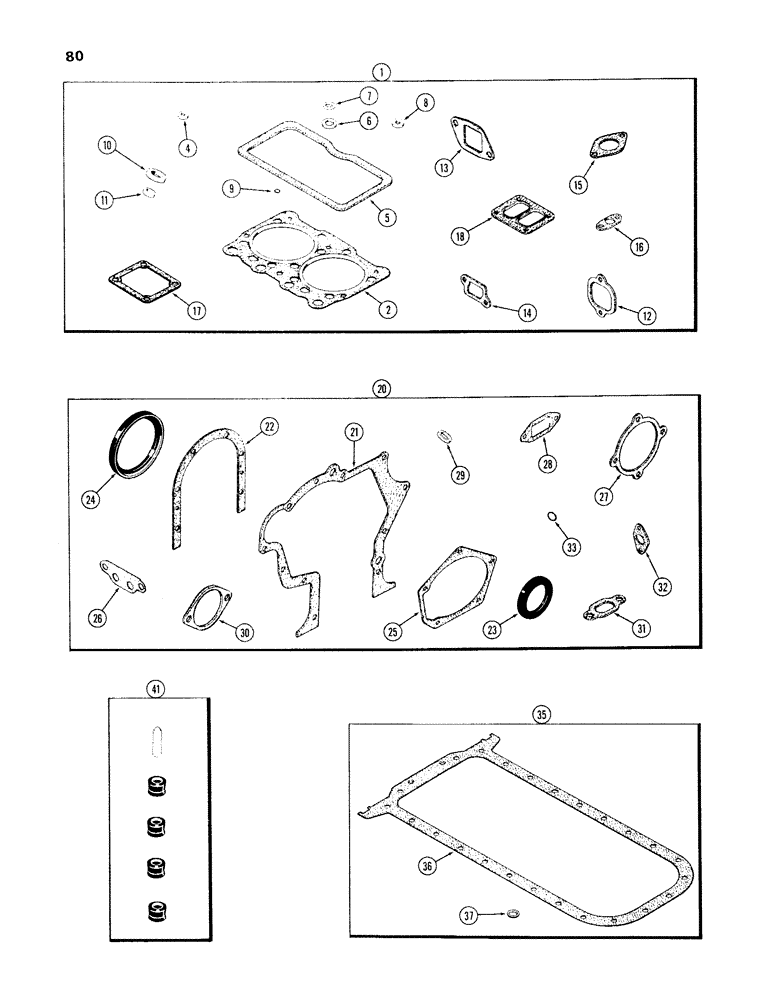

Схема запчастей Case IH 336BD - (080) - ENGINE GASKET KITS, ENGINE LESS FUEL DEVICE, 336BD NATURALLY ASPIRATED ENGINES
36
2
16
9
8
10
23
26
6
21
7
33
12
28
31
1
17
20
18
11
41
37
27
35
30
22
14
15
13
4
25
24
26
5
32

Артикул

Название

Примечание

Количество

1

A43191

KIT

GASKET KIT - valve grind (See Note)

1шт.

2

A64113

CYLINDER HEAD GASKET

- cylinder head

2шт.

4

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

5

A65734

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

2шт.

7

A23684

GASKET

GASKET - cover studs

4шт.

8

A34133

GASKET

- breather tube screw

2шт.

9

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

4шт.

12

A58895

GASKET

- exhaust manifold (steel faced) (Not Used)

4шт.

12

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

4шт.

13

A58662

MANIFOLD GASKET

- intake manifold

4шт.

14

A58637

MANIFOLD GASKET

- water manifold

2шт.

15

G46907

GASKET

- thermostat housing

1шт.

16

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube (Not Used)

1шт.

17

A58910

GASKET

- turbocharger air intake elbow (Not Used)

1шт.

18

A58899

GASKET,0.45mm Thk

- turbocharger (Not Used)

2шт.

20

A42096

GASKET

KIT - cylinder block (See Note)

1шт.

21

A58612

GASKET

- timing gear cover

1шт.

22

A32830

GASKET

- rear seal retainer

1шт.

23

A62049

OIL SEAL

- oil, crankshaft front

1шт.

24

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

25

A58615

GASKET

- fuel pump cover

1шт.

26

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

27

A58646

GASKET

- water pump

1шт.

28

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

29

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

30

A58617

GASKET

- aux. drive cover (Not Used)

1шт.

31

A58670

GASKET

- oil cooler water opening

1шт.

32

A58680

OIL PAN GASKET SET

- oil cooler to water pump (Not Used)

1шт.

33

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base (Not Used)

3шт.

35

A42221

GASKET KIT

- oil pan (See Note)

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

37

A58933

OIL PAN GASKET SET

- drain plug

1шт.

41

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)(See Note)

2шт.

Выбрано товаров: 36
