Запчасти Case IH 336BD (050) - BALANCER AND OIL PUMP, ENGINE LESS FUEL DEVICE, 336BD NATURALLY ASPIRATED ENGINES

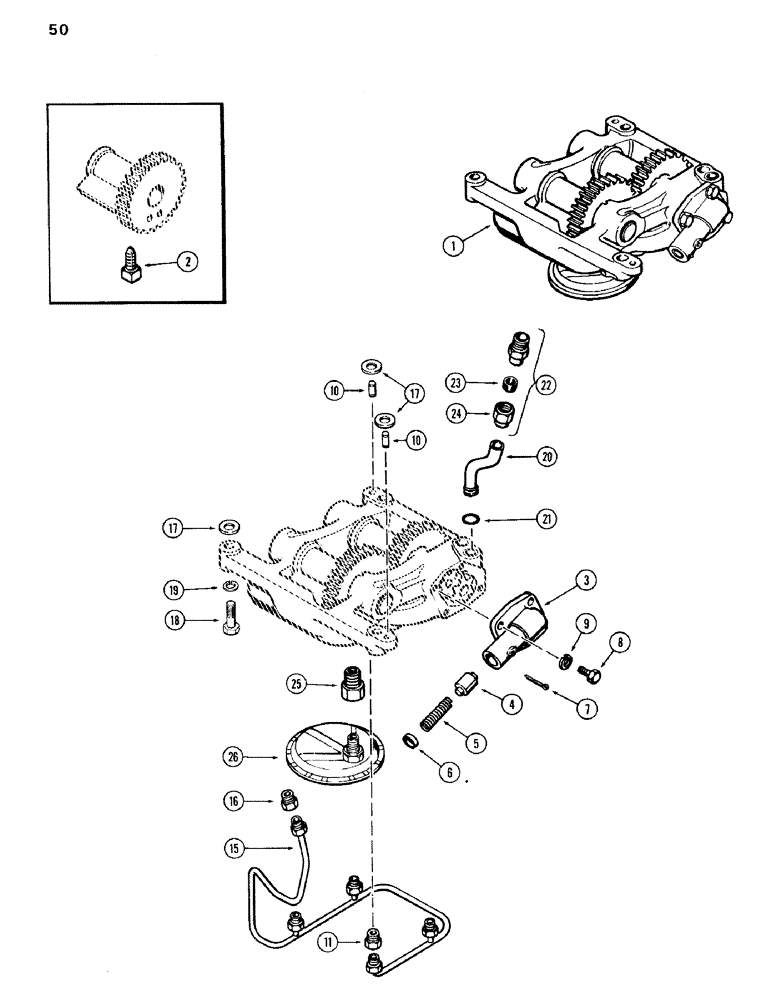

Схема запчастей Case IH 336BD - (050) - BALANCER AND OIL PUMP, ENGINE LESS FUEL DEVICE, 336BD NATURALLY ASPIRATED ENGINES
20
4
17
2
17
1
15
21
23
10
6
26
7
3
24
5
22
9
19
11
25
16
10
8
18

Артикул

Название

Примечание

Количество

1

A62000

BALANCER

ASSY. - engine

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - 1/2 x 1-1/4" N.C. sq. hd. set

4шт.

3

A61129

COVER

- oil pump

1шт.

4

A34992

PISTON

VALVE - relief, oil pump

1шт.

5

A59111

SPRING

- relief valve

1шт.

6

41-1011

PLUG,Cup, 11/16"

- 11/16" cup

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex.

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/8" P.T., 1/4" tube

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/8" P.T., 1/4" tube

1шт.

17

G49401

SHIM,.005" Thk

Mounting .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex.

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex.

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

"O" RING - 9/16 x 3/4 x 3/32"

1шт.

22

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - 1/2" P.T., 5/8" tube

1шт.

23

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

25

A21235

FITTING

ADAPTER -, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

Выбрано товаров: 26
