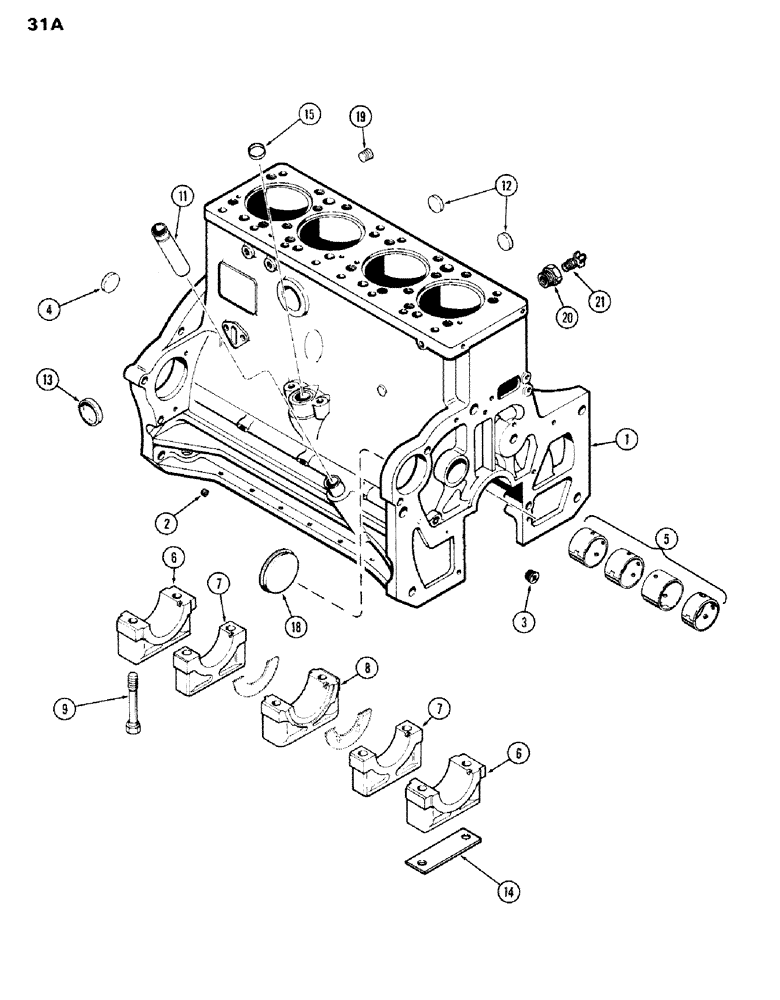

Запчасти Case IH 336BD (031A) - CYL. BLOCK, ENGINE LESS FUEL DEVICE, 336BD NATURALLY ASPIRATED ENGINES, USED WITH SPLINED CRANKSHAFT

A44009

SKELETON ENGINE

BLOCK ASSY. - short (See Note)

1шт.

1

A42004

BLOCK

ASSY. - stripped

1шт.

2

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

3шт.

3

221-1041

PLUG

- 1/8" P.T. sltd. hdless.

3шт.

4

A24361

PLUG

- 2-3/8" cup

1шт.

5

A23577

KIT

BUSHING KIT - camshaft

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

2шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A58566

STEP BOLT

BOLT - 5/8 x 4-1/2" N.C. spec.

10шт.

11

A34540

TUBE

SOCKET - oil filler

1шт.

12

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup

2шт.

13

A58569

PLUG,Cup, 2", Stainless

- 2" cup

1шт.

14

A58859

SHIM,.005" Thk

Brg. cap to oil pump .005" Thk

1шт.

15

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive hole

1шт.

18

41-1052

PLUG,Cup, 3 1/4"

- 2-5/8" cup

1шт.

19

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" P.T. hex. sckt. hd

1шт.

20

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4 to 1/4"

1шт.

21

A23656

COCK, DRAIN

VALVE - drain, water

1шт.
