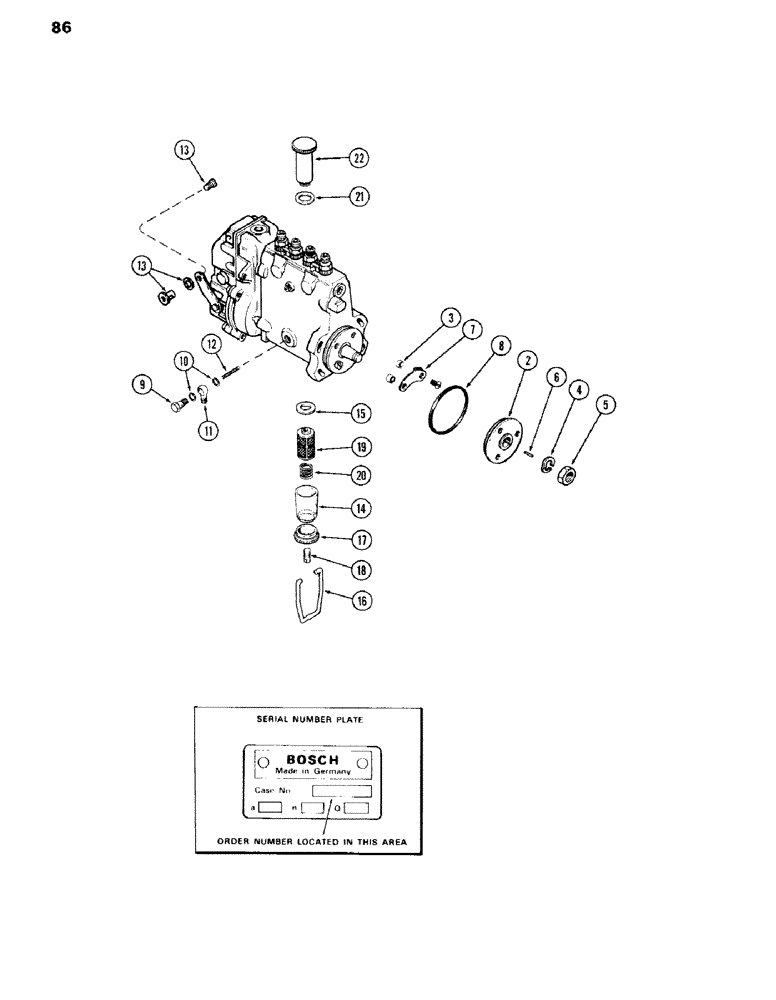

Запчасти Case IH 301BD (086) - FUEL INJECTION PUMP, B, E, H, 336BD NATURALLY ASPIRATED ENGINES

A50861

PUMP ASSY. - fuel injection (see note) (Qty: B- 1)

1шт.

A50860

PUMP ASSY. - fuel injection (see note) (Qty: E- 1)

1шт.

A50862

PUMP ASSY. - fuel injection (see note) (Qty: H- 1)

1шт.

2

A41853

HUB

- pump drive (Qty: B, E, H- 1)

1шт.

3

A41855

BUSHING

SPACER - pump timing pointer (Qty: B, E, H- 2)

1шт.

4

A42312

LOCK WASHER

- lock, pump drive hub nut (Qty: B, E, H- 1)

1шт.

5

A42313

NUT

- pump drive hub (Qty: B, E, H- 1)

1шт.

6

A20933

KEY

- pump drive hub to shaft (Qty: B, E, H- 1)

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment (Qty: B, E, H- 1)

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- seal, pump adjustment (Qty: B, E, H- 1)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting (Qty: B, E, H- 1)

1шт.

10

A22381

WASHER

- copper, tube fitting (Qty: B, E, H- 2)

1шт.

11

A25191

FITTING

- banjo, oil tube to pump (Qty: B, E, H- 1)

1шт.

12

A25190

SPRING

- oil tube fitting (Qty: B, E, H- 1)

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- lock, pump stop control cable (Qty: B, E, H- 1)

1шт.

14

A43347

BOWL

- filter (Qty: B, E, H- 1)

1шт.

15

A43346

GASKET

- bowl (Qty: B, E, H- 1)

1шт.

16

A43350

CLAMP

BAIL - bowl (Qty: B, E, H- 1)

1шт.

17

A43348

NUT

BAILNUT - retaining (Qty: B, E, H- 1)

1шт.

18

A43349

STUD

- retaining, bowl (Qty: B, E, H- 1)

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump (Qty: B, E, H- 1)

1шт.

20

A43345

SPRING

- retaining, element (Qty: B, E, H- 1)

1шт.

21

A43351

SEAL

- primer & port copper gasket (Qty: B, E, H- 2)

1шт.

22

A43343

CARTRIDGE

PRIMER - hand, fuel pump (Qty: B, E, H- 1)

1шт.
