/ / / / / / / / (10.218.AQ[02]) - FUEL INJECTION PUMP COMPONENTS

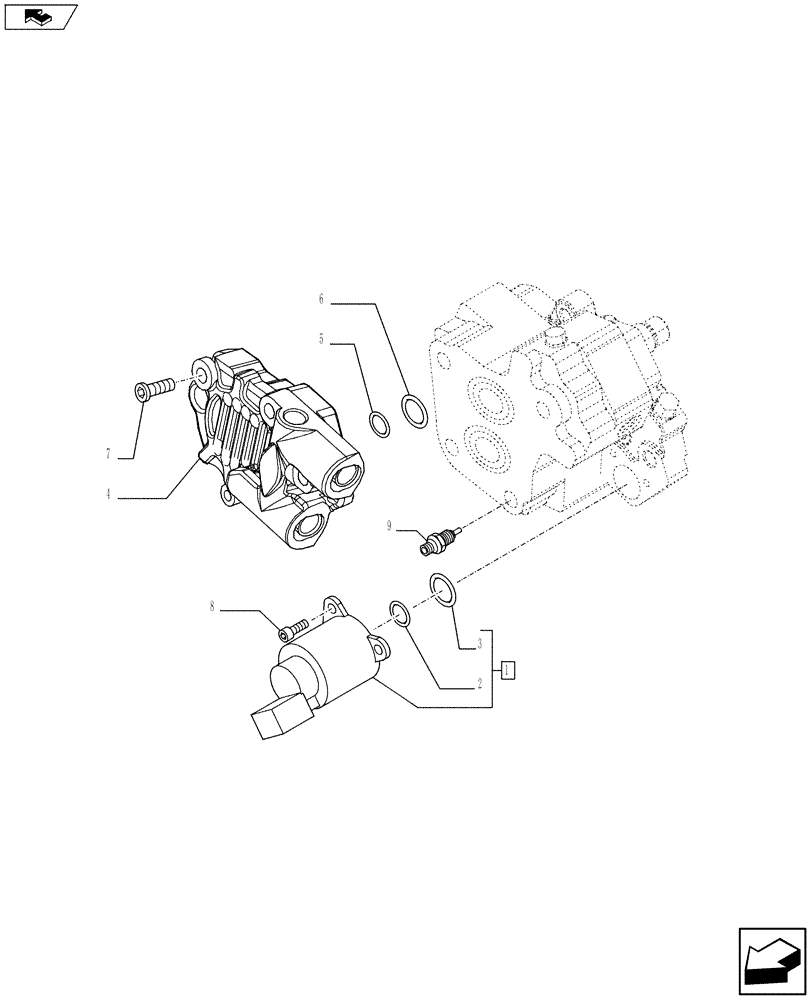

Запчасти Case IH 170A (10.218.AQ[02]) - FUEL INJECTION PUMP COMPONENTS (10) - ENGINE
![Схема запчастей Case IH 170A - (10.218.AQ[02]) - FUEL INJECTION PUMP COMPONENTS (10) - ENGINE](https://partsell.ru/storage/images/caseih/5222107.png)
2
4
3
1
8
6
9
7
5
1
42541851
SOLENOID
Incl 2 - 3
1шт.
2
42541850
O-RING
Incl with 1
1шт.
3
42541849
O-RING
Incl with 1
1шт.
4
42547619
FUEL PUMP
Injection
1шт.
5
42550488
O-RING
Pump
1шт.
6
42548060
O-RING
Pump
1шт.
7
42550487
SCREW
Mounting
4шт.
8
42550932
SCREW
Mounting
3шт.
9
42550486
VALVE
Pump
1шт.
