Запчасти Case IH 150A (55.640.BC) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

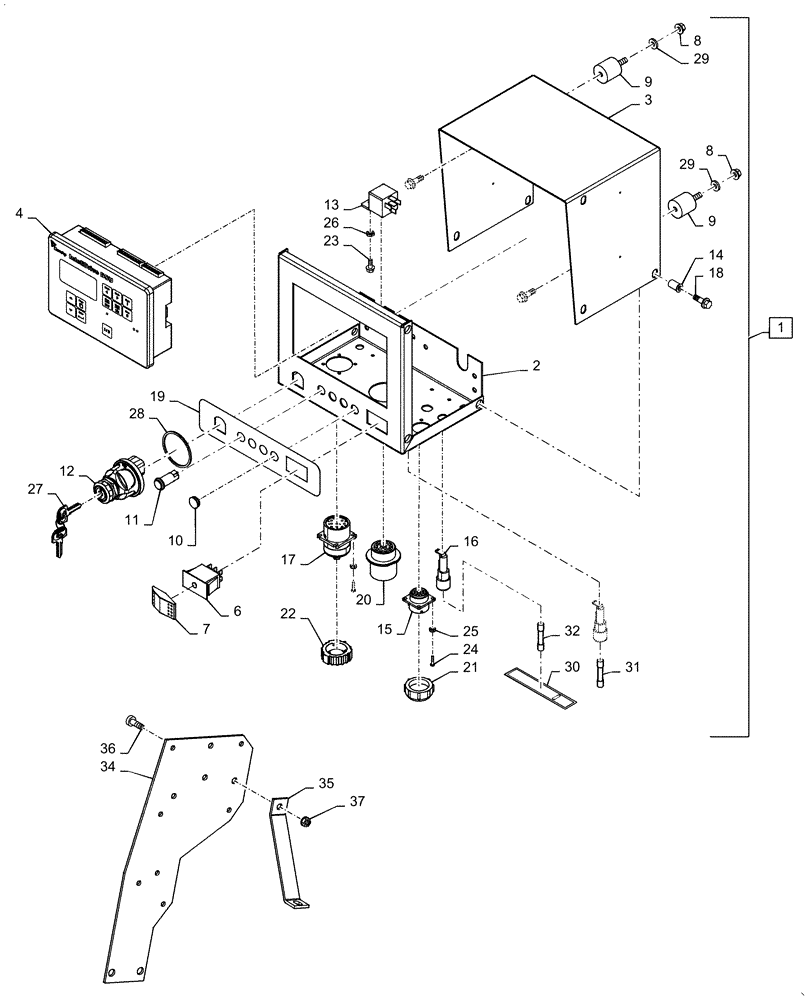

Схема запчастей Case IH 150A - (55.640.BC) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS
34
11
9
17
35
36
4
37
32
23
29
13
8
9
18
2
8
19
20
7
26
31
24
10
15
28
30
12
1
16
14
3
27
29
25
22
21
6

Артикул

Название

Примечание

Количество

1

47722058

PANEL

Control Box Assy, Incl 2 - 32

1шт.

2

47722059

PANEL

Control Box

1шт.

3

47722060

COVER

Control Box

1шт.

4

47722061

CONTROLLER

ID-Lite Comap

1шт.

5

47702999

WIRE HARNESS

T-4, Control Panel, Not Illustrated

1шт.

6

84412538

SWITCH

Body

1шт.

7

84412537

ACTUATOR

Switch

1шт.

8

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

47722093

MOUNT

Isolator

4шт.

10

47722094

PLUG

Hole, 1/2"

1шт.

11

47722095

LAMP SOCKET

Amber, 24V

3шт.

12

47709417

IGNITION SWITCH

Keyed

1шт.

13

198162A1

RELAY

24V

3шт.

14

87441708

NUT

1/4" - 20

6шт.

15

47722105

ELEC CONNECTOR

18 Pin

1шт.

16

47726097

HOLDER

Fuse, Snap-In

2шт.

17

310057A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

18

523292

BOLT,1/4" - 20 x 1.03" OAL

10шт.

19

47689105

DECAL,220mm x 50mm H

Control Panel

1шт.

20

225046C1

CONNECTOR, ELEC

Size 18

1шт.

21

47726100

CAP

Dust

1шт.

22

84074633

COVER

Dust Cap

1шт.

23

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

3шт.

24

440-1048

SCREW,Cross Pan Hd, #4-40 x 1/2"

8шт.

25

47726102

NUT

#4 - 40, Keps

8шт.

26

87825

NUT,#10-32

4шт.

27

47709418

KEY

Pair

1шт.

28

84294085

WASHER

Plastic, 1" x 1 1/4"

1шт.

29

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

30

47737344

DECAL

Fuse Installation

1шт.

31

86600094

FUSE,30A, Glass

30A, Glass Type

1шт.

32

86705048

FUSE,5 Amp, Type 3AG

5A

1шт.

33

47612022

DIODE

Wire Harness, Not Illustrated

1шт.

34

47726118

BRACKET

Control Panel Mount

1шт.

35

47726120

BRACKET

Panel Suppprt

1шт.

36

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

1шт.

37

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

Выбрано товаров: 37
