Запчасти Case IH 150A (31.225.AG) - PTO CLUTCH (31) - IMPLEMENT POWER TAKE OFF

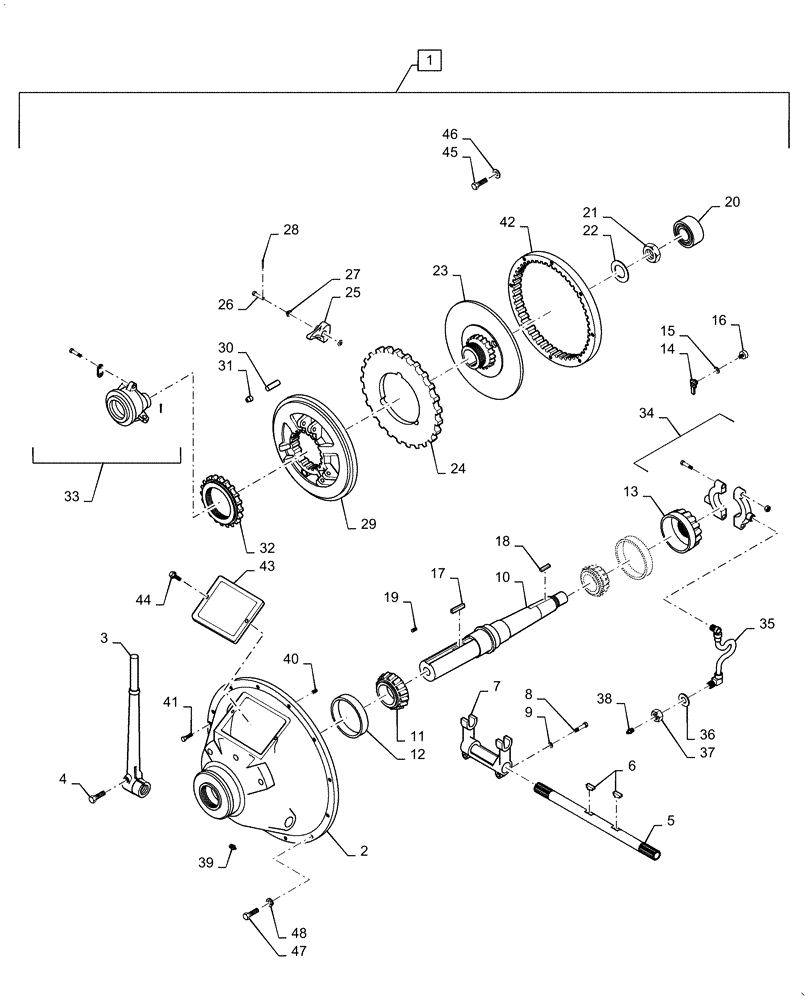

Схема запчастей Case IH 150A - (31.225.AG) - PTO CLUTCH (31) - IMPLEMENT POWER TAKE OFF
29
39
7
22
30
27
32
1
38
3
12
2
44
23
47
31
42
48
21
36
9
37
16
34
13
45
14
24
28
15
8
35
10
46
11
18
25
33
40
43
5
6
19
26
20
17
4
41

Артикул

Название

Примечание

Количество

1

87421200

PTO CLUTCH

11-1/2 inch, Incl 2 - 48

1шт.

2

A40259

HOUSING

Clutch, Incl with 1

1шт.

3

1347799C1

LEVER

Hand, Incl with 1

1шт.

4

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Incl with 1

1шт.

5

A44136

SHAFT

Operating Lever, Incl with 1

1шт.

6

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

Incl with 1

2шт.

7

A10246

YOKE

Throwout, Incl with 1

1шт.

8

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

Incl with 1

2шт.

9

193-78

LOCK WASHER,3/8"

Incl with 1

2шт.

10

A43199

SHAFT

Clutch, Incl with 1

1шт.

11

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

Incl with 1

2шт.

12

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

Incl with 1

2шт.

13

A43327

RETAINER

Bearing, Incl with 1

1шт.

14

1347816C1

BEARING LOCK NUT

Retainer, Incl with 1

1шт.

15

193-83

LOCK WASHER,Int Tooth, 5/16"

Incl with 1

1шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Incl with 1

1шт.

17

A40256

KEY

Square, 5/8 x 5/8 x 5-3/8 inch, Incl with 1

1шт.

18

A40305

KEY

Square, 3/8 x 3/8 x 2-1/2 inch, Incl with 1

1шт.

19

221-841

PLUG

Hex Socket, 1/4 inch PT, Incl with 1

1шт.

20

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

Incl with 1

1шт.

21

A58595

NUT

Hex, Incl with 1

1шт.

22

A9273

LOCK WASHER

Tab Lock, Hub Nut, Incl with 1

1шт.

23

A10453

PLATE

Hub, Incl with 1

1шт.

24

1347802C1

PLATE

Driving, Incl with 1

1шт.

25

A10444

LEVER

Floating Plate, Incl with 1

3шт.

26

A40254

PIN

Pivot, Lever, Incl with 1

3шт.

27

A10454

WAVE WASHER

Spring, Pivot Pin, Incl with 1

6шт.

28

A43383

SPLIT PIN

Cotter, Special, Incl with 1

3шт.

29

A44723

PLATE

Floating, Incl with 1

1шт.

30

1347804C1

SPRING

Adjustable Lock Pin, Incl with 1

1шт.

31

1347803C1

PIN

Lock, Adjusting Ring, Incl with 1

1шт.

32

A10448

RING

Adjusting, Incl with 1

1шт.

34

A40245

COLLAR

Sleeve, Incl with 1

1шт.

35

1347801C1

HOSE

Flexible, 311 mm (12-1/4 inch) Long, Incl with 1

1шт.

36

193-84

LOCK WASHER,5/8"

Incl with 1

1шт.

37

25-1110

NUT,5/8"-18, G5

Incl with 1

1шт.

38

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Incl with 1

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Incl with 1

2шт.

40

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

Incl with 1

1шт.

41

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

Incl with 1

2шт.

42

51200863

RING

Drive, Incl with 1

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - Name and Inspection, Incl with 1

1шт.

44

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

Incl with 1

2шт.

45

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Incl with 1

8шт.

46

493-21039

LOCK WASHER,Int Tooth, 3/8"

Incl with 1

8шт.

47

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Incl with 1

12шт.

48

892-11010

LOCK WASHER,M10

Incl with 1

12шт.

49

47704965

HANDLE

Rubber, Incl with 1, Not Illustrated

1шт.

Выбрано товаров: 48
