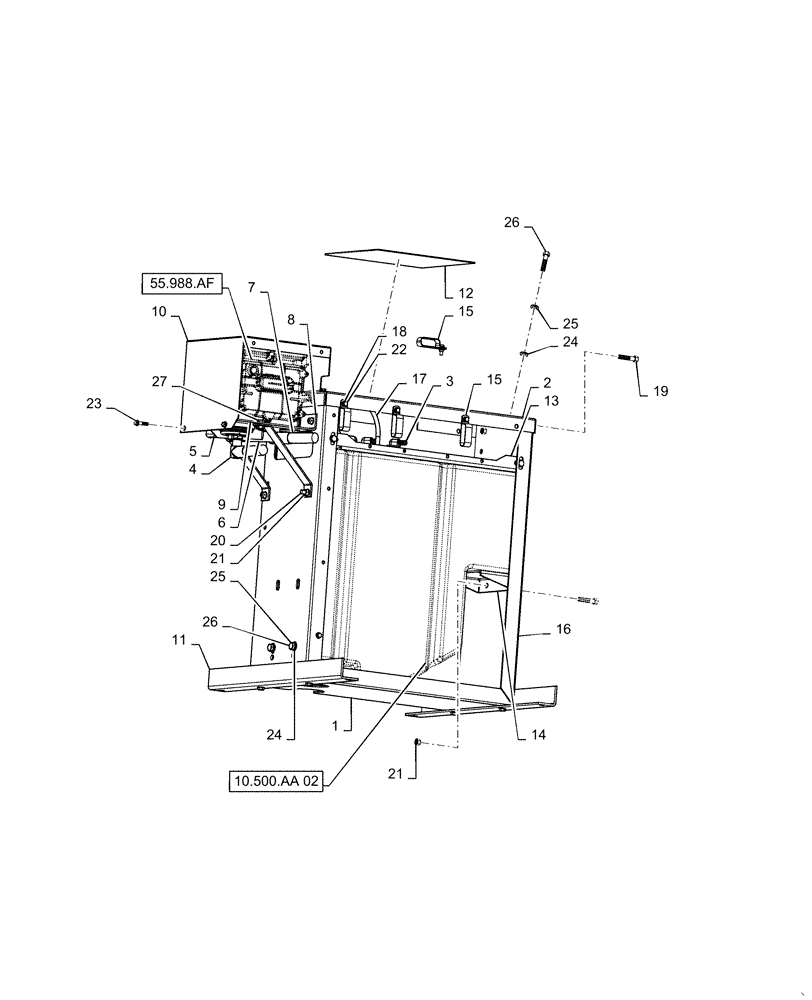

Запчасти Case IH 120A (10.500.AA[01]) - DEF/ADBLUE TANK (10) - ENGINE

1

47726209

BRACKET

DEF Tank

1шт.

2

47726210

COVER

DEF Tank

1шт.

3

47668023

FITTING,16mm x 3/8 90 Degree Hose Barb

Tank

2шт.

4

47668062

HOSE

Pressure, DEF

1шт.

5

47668061

HOSE

DEF

1шт.

6

47668060

HOSE

Suction, DEF

1шт.

7

47668059

HOSE

Pressure, DEF

1шт.

8

47599366

BRACKET

DNOX2 Mounting

1шт.

9

47599367

BRACKET

DNOX2 Support

2шт.

10

47599368

COVER

DNOX2 Module

1шт.

11

47599369

BRACKET

Tank

2шт.

12

47575187

DECAL,250mm x 208mm H

DEF Refill Notice

1шт.

13

47726211

BRACKET

Angle, DEF Tank

1шт.

14

47726212

SUPPORT

Tank SIde Bracket

1шт.

15

47722042

CLAMP

P Style, Long

3шт.

16

47726213

BRACKET

DEF Tank

1шт.

17

47726214

TUBE

DEF Vent

1шт.

18

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

19

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

19шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

21

247780

SERRATED NUT,Flg, USR, 3/8"-16

20шт.

22

523292

BOLT,1/4" - 20 x 1.03" OAL

9шт.

23

523282

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

24

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

25

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Split Lock

4шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

27

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
