Запчасти Case IH 120A (10.408.AC) - HEAT EXCHANGER - ENGINE (10) - ENGINE

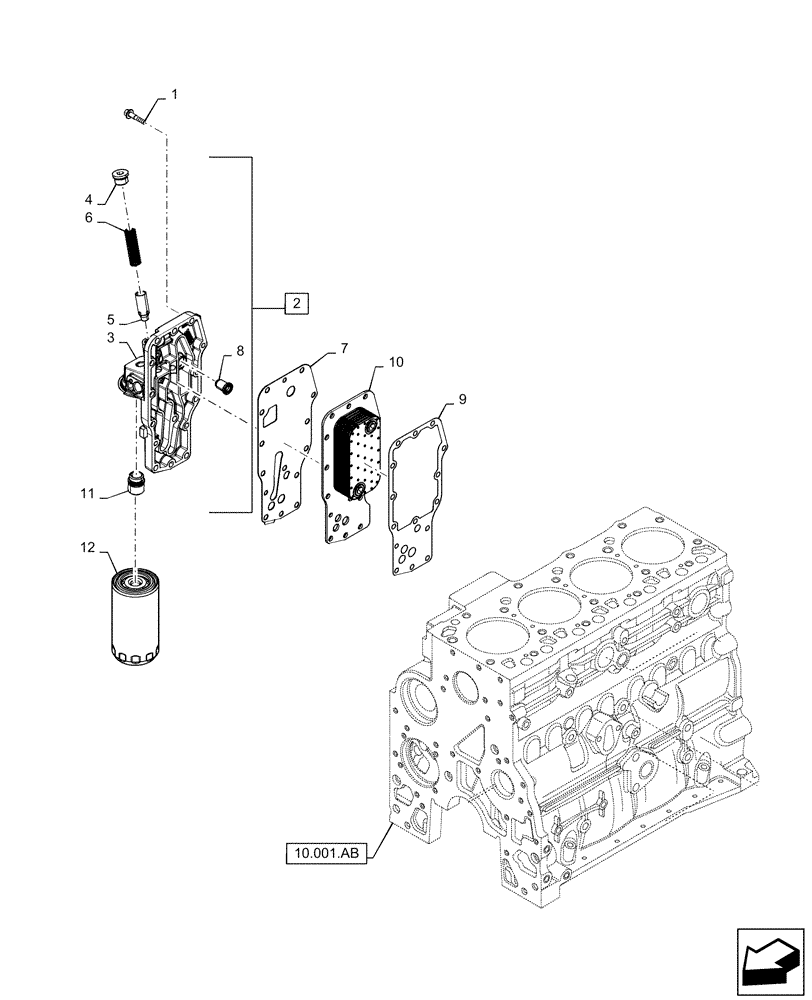

Схема запчастей Case IH 120A - (10.408.AC) - HEAT EXCHANGER - ENGINE (10) - ENGINE
11
6
2
3
10
9
1
4
7
5
12
10.001.ab
8

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

2853780

FILTER HEAD

Incl 3 - 6, 8, 11

1шт.

3

NSS

NOT SOLD SEPARAT

Filter Head, Incl with 2

1шт.

4

2853781

PLUG,Hex, M22 x 1.5 ORB

Incl with 2

1шт.

5

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Regulator. Incl with 2

1шт.

6

4895045

SPRING,Compression, 14.7mm OD x 66mm L

Compression, Incl with 2

1шт.

7

4896409

GASKET,1.55mm Thk

Filter Head

1шт.

8

J936365

VALVE PRESSURE RELIE

Incl with 2

1шт.

9

2830559

GASKET,0.5mm Thk

Cooler

1шт.

10

2853722

HEAT EXCHANGER

Element

1шт.

10

4896406

HEAT EXCHANGER

Core

1шт.

11

4893391

ADAPTER,M24 x 2 x M27 x 2

Incl with 2

1шт.

12

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

Spin On

1шт.

Выбрано товаров: 13
