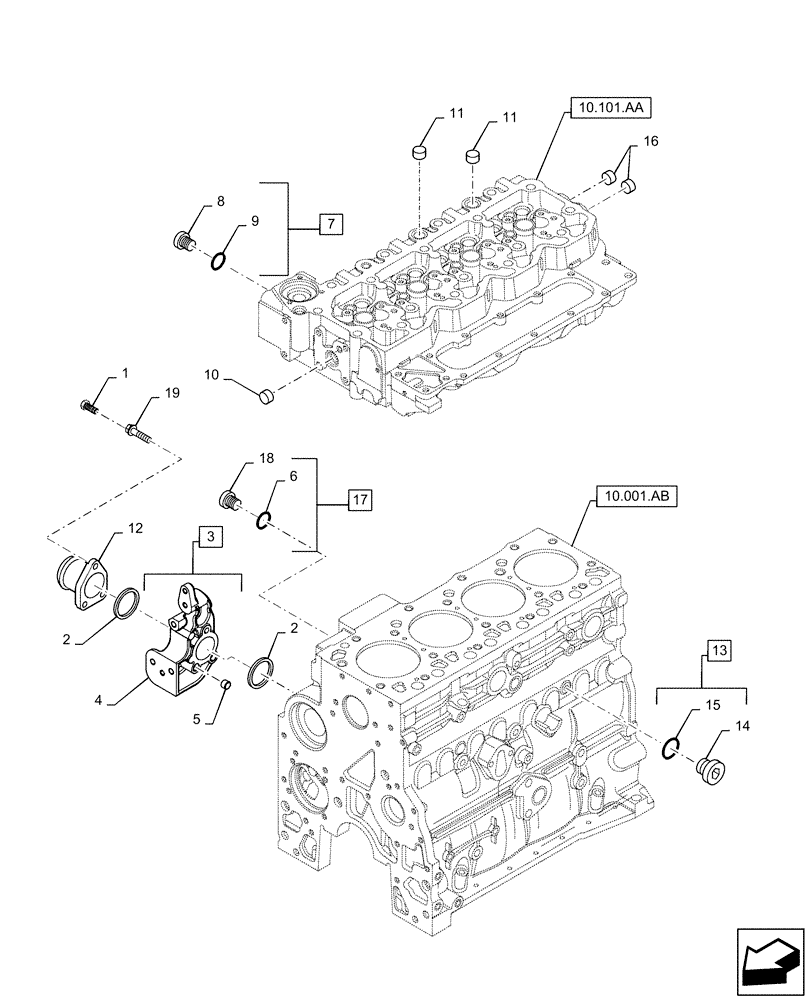

Запчасти Case IH 120A (10.400.AE) - ENGINE COOLING SYSTEM INLET (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

Inlet Support

2шт.

3

2854937

SUPPORT

Inlet, Incl 4 - 5

1шт.

4

2854938

FITTING

Connector, Incl with 3

1шт.

5

4895576

DOWEL

Incl with 3

2шт.

6

4895393

O-RING,2.2mm Thk x 15.3mm ID

Incl with 17

1шт.

7

4895080

HEX SOCKET PLUG,M22 x 1.5

Incl 8 - 9

1шт.

8

4895081

PLUG,M22 x 1.5 x 16.5mm L

Incl with 7

1шт.

9

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

Incl with 7

1шт.

10

4892762

PLUG,1/4 - 18" OD x 0.46" L

1шт.

11

4895078

PIPE PLUG,1/2"-14

2шт.

12

4892347

SUPPORT

Inlet

1шт.

13

4895623

HEX SOCKET PLUG,M16 x 1.5

Incl 14 - 15

1шт.

14

4895624

PLUG,M16 x 1.5 x 18mm L

Incl with 13

1шт.

15

4895625

O-RING,13.3mm ID x 2.2mm Width

Incl with 13

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

17

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl 6, 18

1шт.

18

4895394

HEX SOCKET PLUG,M18 x 1.5

Incl with 17

1шт.

19

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.
