Запчасти Case IH 120A (10.218.AQ[01]) - FUEL INJECTION PUMP (10) - ENGINE

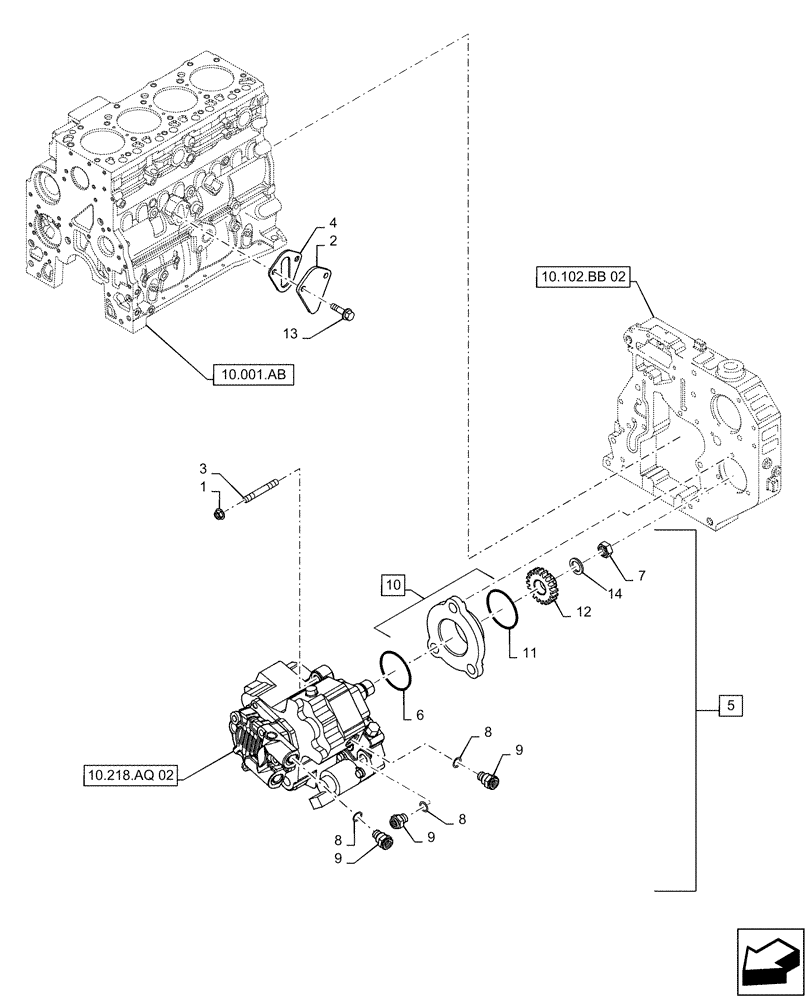

Схема запчастей Case IH 120A - (10.218.AQ[01]) - FUEL INJECTION PUMP (10) - ENGINE
4
11
9
6
8
1
10.218.aq 02
12
9
3
8
7
2
5
10.102.bb 02
10
14
13
8
9
10.001.ab

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

Plate

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 x 1,25 x 50

1шт.

4

4890700

GASKET,1.21mm Thk

Cover Plate

1шт.

5

84385110

FUEL INJECTION PUMP

Injection, Incl 6 - 12, 14

1шт.

5

84385110R

REMAN-INJECTION PUMP

1шт.

5

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

Incl with 5

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

Incl with 5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

Incl with 5

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

Incl with 5

4шт.

10

2852804

HUB

Injection Pump, Incl 11, Incl with 5

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

Incl with 5, 10

1шт.

12

4893389

DRIVEN GEAR,27T

Incl with 5

1шт.

13

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

14

4890635

SPRING WASHER

Incl with 5

1шт.

Выбрано товаров: 16
