Запчасти Case IH 120A (10.206.AG[02]) - FUEL FILTER (10) - ENGINE

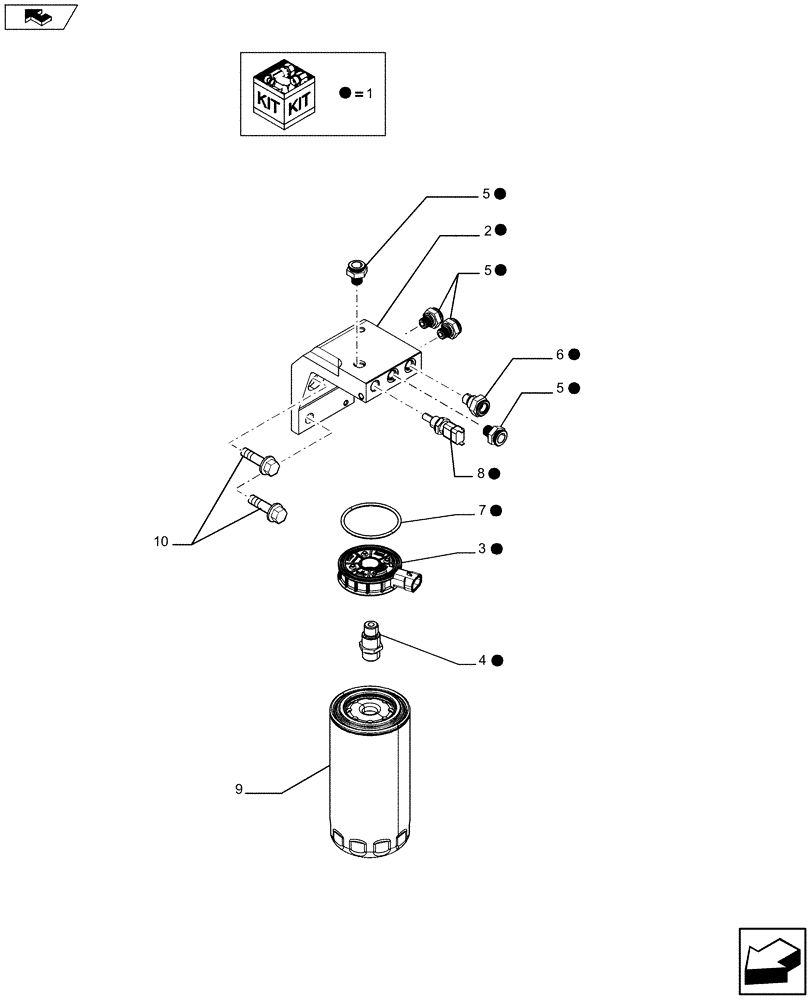

Схема запчастей Case IH 120A - (10.206.AG[02]) - FUEL FILTER (10) - ENGINE
1
4
5
6
1
7
1
1
1
5
10
8
1
3
1
1
1
5
1
1
9
2

Артикул

Название

Примечание

Количество

1

2854561

HOUSING

Incl 2 - 8

1шт.

2

2854562

BRACKET

Mounting, Incl with 1

1шт.

3

4897838

HEATER

Fuel, M12 x 30, Incl with 1

1шт.

4

2854565

BUSHING

Heater, Incl with 1

1шт.

5

2854563

FITTING

Incl with 1

4шт.

6

2854564

FITTING,M12 x 1.5 - 12 H9

Incl with 1

1шт.

7

4898876

O-RING,63.1mm ID x 3.53mm Width

Incl with 1

1шт.

8

4897224

SENSOR

Temperature, Incl with 1

1шт.

9

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Spin On

1шт.

10

2854566

SCREW,Hex, M12 x 1.75 x 30mm

M12 x 1.75mm x 30mm

2шт.

Выбрано товаров: 10
