(10.110.AC[02]) - DYNAMIC BALANCER - HOUSING

Запчасти Case IH 120A (10.110.AC[02]) - DYNAMIC BALANCER - HOUSING (10) - ENGINE

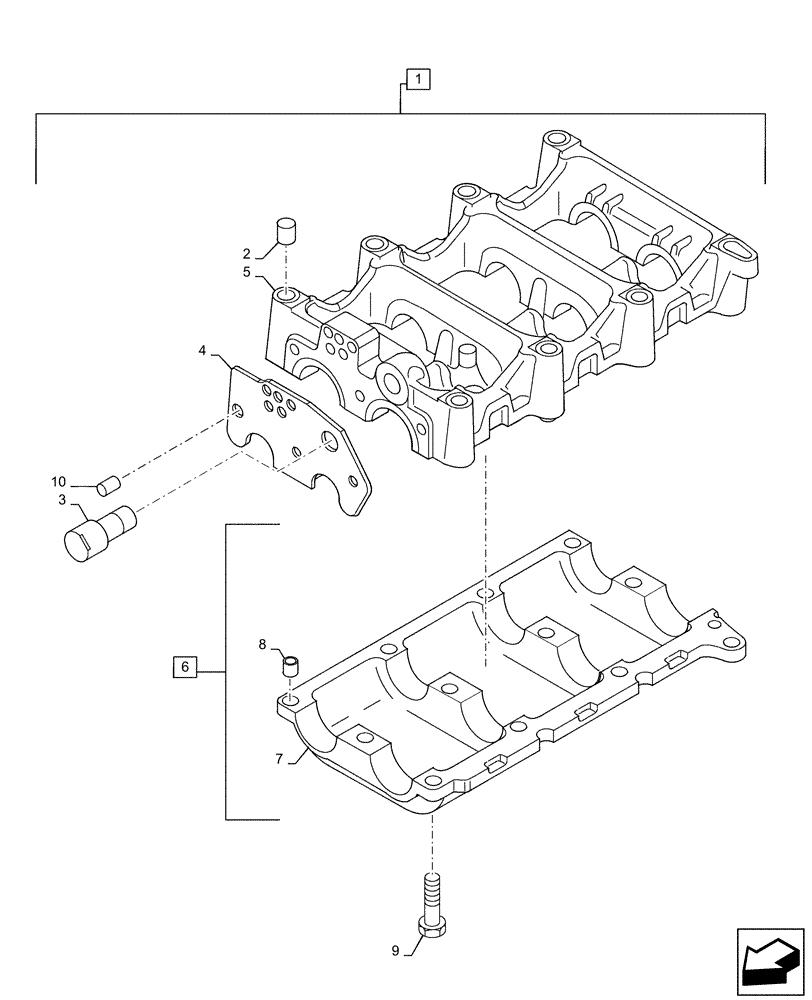

Схема запчастей Case IH 120A - (10.110.AC[02]) - DYNAMIC BALANCER - HOUSING (10) - ENGINE
1
8
4
6
5
2
7
10
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2855744

HOUSING

Balancer, Incl 2 - 10

1шт.

2

4899027

DOWEL,M14.05 x 14 L

Incl with 1

2шт.

3

2830948

IDLE SHAFT

Incl with 1

1шт.

4

2855746

THRUST PLATE

Front, Incl with 1

1шт.

5

2831303

HOUSING

Upper, Incl with 1

1шт.

6

2831302

HOUSING

Assy, Incl 7 - 8. Incl with 1

1шт.

7

2831304

SUMP

Lower Housing, Incl with 1, 6

1шт.

8

4891209

DOWEL,M13 x 8 L

Incl with 1, 6

6шт.

9

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

Incl with 1

12шт.

10

2831305

DOWEL,M8 x 17 L

Incl with 1

1шт.
