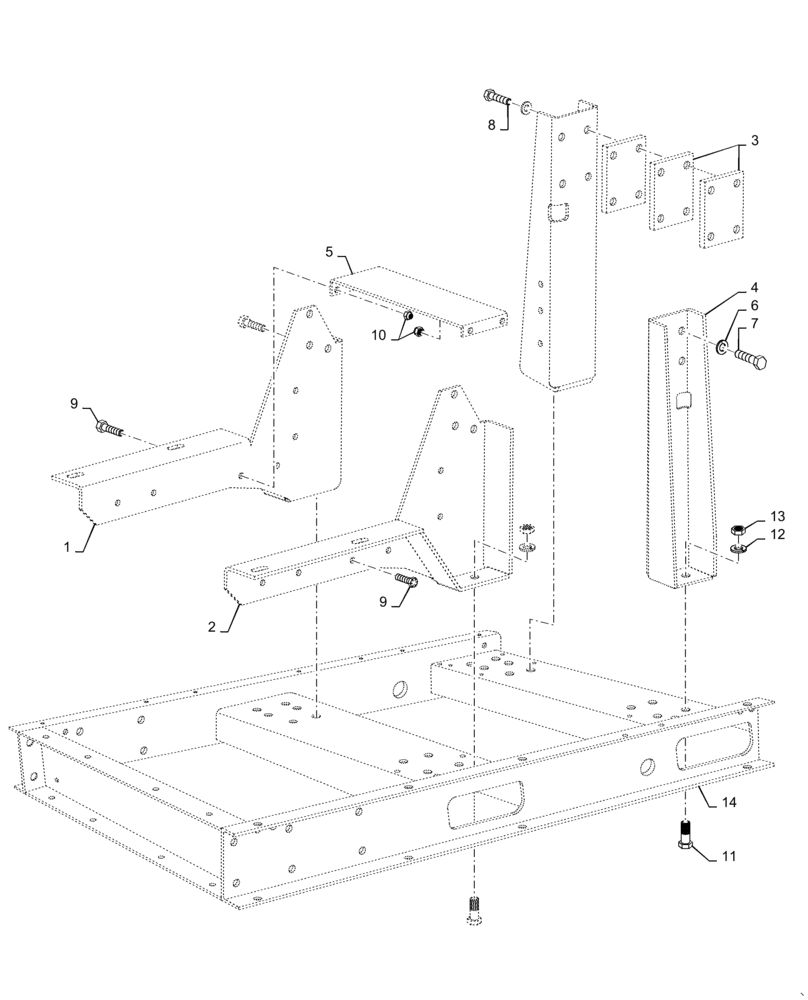

Запчасти Case IH 120A (10.001.AK) - FRAME, RADIATOR SUPPORT AND ENGINE MOUNTS (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

Support, Engine, RH Front, Must Order Complete Unit

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Engine, LH Front, Must Order Complete Unit

1шт.

3

NSS

NOT SOLD SEPARAT

Spacer, T4A Engine, Must Order Complete Unit

3шт.

4

NSS

NOT SOLD SEPARAT

Support, Engine Rear, Must Order Complete Unit

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Engine Front, Must Order Complete Unit

1шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

14шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

8

86624980

BOLT,Hex, M12 x 65mm, Cl 10.9

4шт.

9

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

11

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

4шт.

12

86729275

LOCK WASHER,5/8 0.634 CST ZND

4шт.

13

86625068

NUT,5/8"-11, G8

4шт.

14

NSS

NOT SOLD SEPARAT

Frame, Base, Must Order Complete Unit

1шт.
