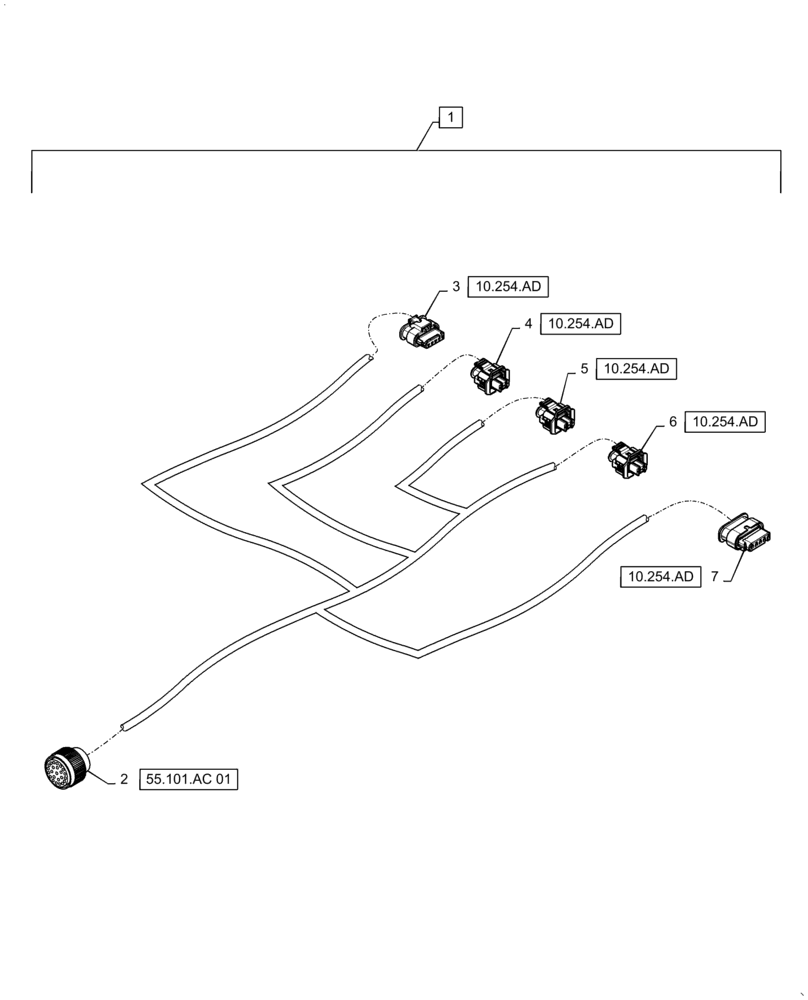

Запчасти Case IH 100A (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, EXHAUST SYSTEM (55) - ELECTRICAL SYSTEMS

1

47599365

WIRE HARNESS

Exhaust System, Incl 2 - 7

1шт.

2

87703844

CONNECTOR, ELEC

Deutsch HD Series 14 Way, P14, Exhaust Harness to ATS Harness, Male, Incl with 1

1шт.

3

87709809

ELEC CONNECTOR

Bosch BDK 2.8 4 Way, Humidity & Temperature Sensor, Male, Incl with 1

1шт.

3

87636264

ELEC CONNECTOR

Cavity Plug, Incl with 1

1шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

Bosch BDK 2.8 2 Way, Cat Temperature Upstream, Male, Incl with 1

1шт.

4

87636264

ELEC CONNECTOR

Cavity Plug, Incl with 1

1шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

Bosch BDK 2.8 2 Way, Cat Temperature Downstream, Male, Incl with 1

1шт.

5

87636264

ELEC CONNECTOR

Cavity Plug, Incl with 1

1шт.

6

87709798

ELEC CONNECTOR,Female, 2 Cavities

Bosch BDK 2.8 2 Way, Reduct Meter Valve, Male, Incl with 1

1шт.

6

87636264

ELEC CONNECTOR

Cavity Plug, Incl with 1

1шт.

7

47514978

ELEC CONNECTOR,Female, 5 Cavities

Hirschmann 1.2mm 5 Way, NOX Sensor, Male, Incl with 1

1шт.

7

84142302

SEAL

Cavity, Incl with 1

1шт.

7

87709655

BLANK-OFF PLUG

Incl with 1

1шт.
