(55.101.AC[02]) - WIRE HARNESS & CONNECTOR, ATS

Запчасти Case IH 100A (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, ATS (55) - ELECTRICAL SYSTEMS

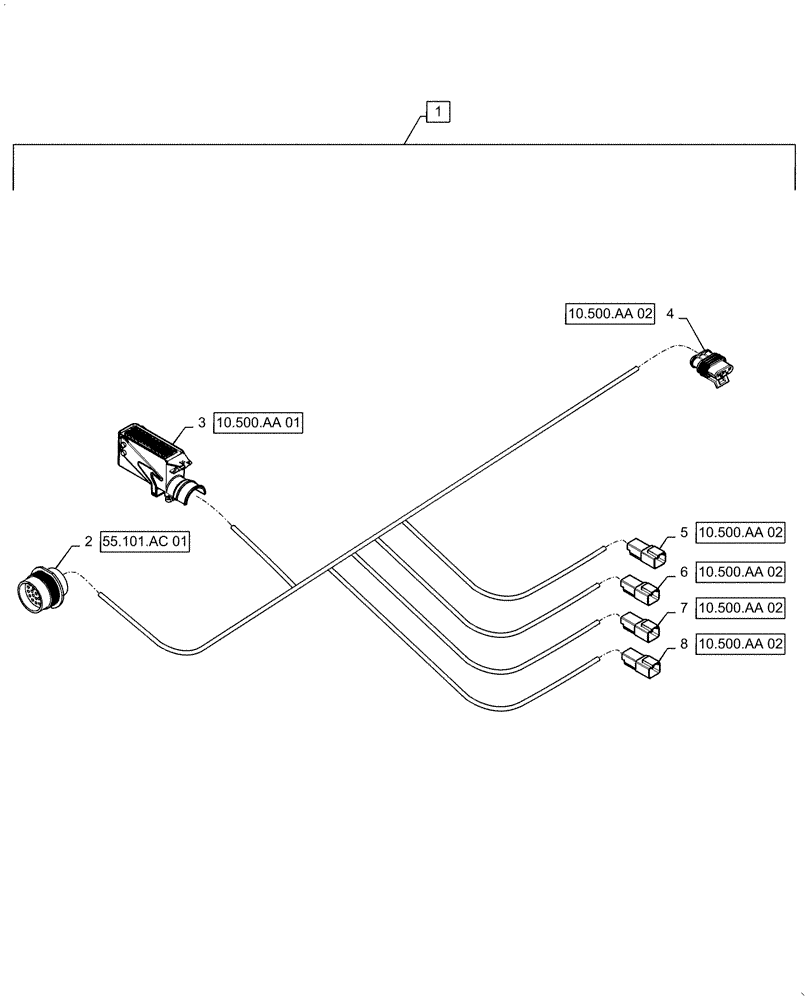

Схема запчастей Case IH 100A - (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, ATS (55) - ELECTRICAL SYSTEMS
10.500.aa 02
7
2
5
10.500.aa 02
10.500.aa 02
1
55.101.ac 01
10.500.aa 02
10.500.aa 01
3
6
4
8
10.500.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47703000

WIRE HARNESS

ATS, Incl 2 - 8

1шт.

2

87702882

ELEC CONNECTOR

Deutsch HD Series 23-way, P23 ATS Harness to Engine Harness, Male, Incl with 1

1шт.

3

87713290

ELEC CONNECTOR

Bosch Compact 35-way, DENOX2 Module, Male, Incl with 1

1шт.

3

82035902

PLUG

Cavity, Incl with 1

1шт.

3

87713301

CAP

Connector, Incl with 1

1шт.

4

84062580

CONNECTOR, ELEC

AMP Superseal 1.5 3-way, DEF Tank, Male, Incl with 1

1шт.

4

87680691

PLUG

Cavity, Incl with 1

1шт.

5

87696073

PLUG

Deutsch DT Series 2-way, C2A DEF 1 Suction, Male Connector, Incl with 1

1шт.

6

87696073

PLUG

Deutsch DT Series 2-way, C2B DEF 2 BF Tank, Male Connector, Incl with 1

1шт.

7

87696073

PLUG

Deutsch DT Series 2-way, C2C DEF 3 Pressure, Male Connector, Incl with 1

1шт.

8

87696073

PLUG

Deutsch DT Series 2-way, C2D DEF 4 BF DENOX, Male Connector, Incl with 1

1шт.
