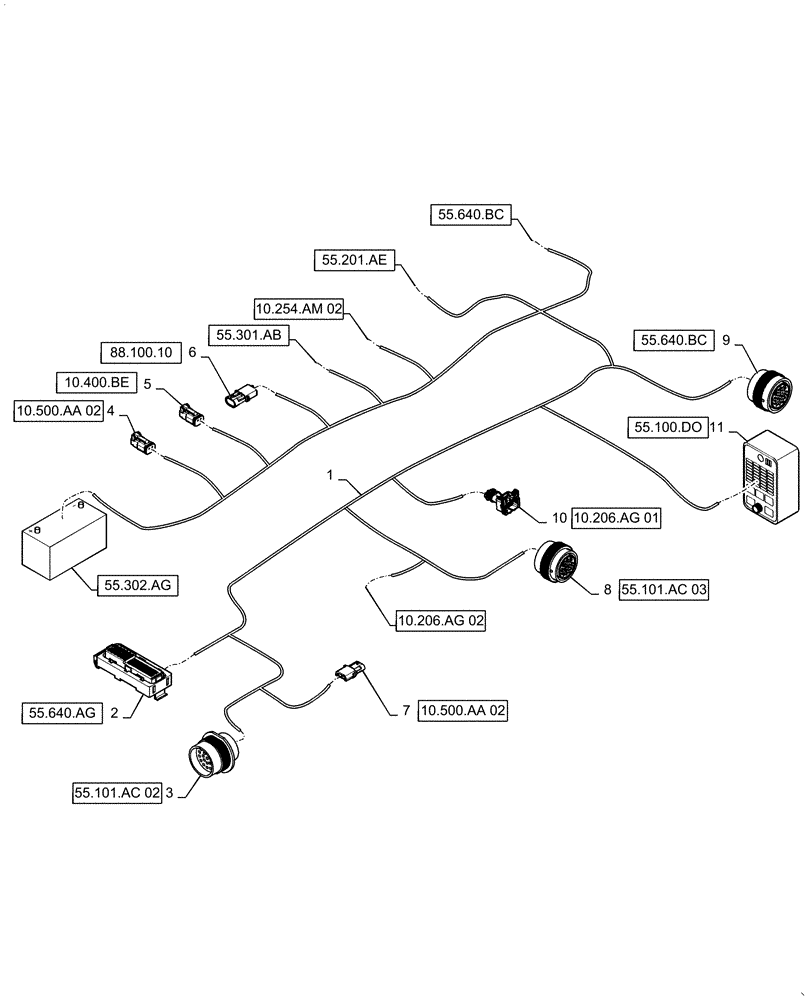

Запчасти Case IH 100A (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, ENGINE (55) - ELECTRICAL SYSTEMS

1

47702998

WIRE HARNESS

Engine, Incl 2 - 10

1шт.

2

87636264

ELEC CONNECTOR

Cavity Plug, Incl with 1

1шт.

2

84160698

ELEC CONNECTOR

Bosch BDK 2.8 89-way, ECU, Male, Incl with 1

1шт.

3

87703819

ELEC CONNECTOR

Deutsch HD Series 23-way, C23 ATS, Connector, Female, Incl with 1

1шт.

4

87711966

PLUG

Deutsch DT Series 2-way, DEF Refill, Connector, Female, Incl with 1

1шт.

5

87711966

PLUG

Deutsch DT Series 2-way, Low Coolant, Connector, Female, Incl with 1

1шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Packard Weather Pack 2-way, Low Oil, Incl with 1

1шт.

6

87686742

PLUG

Cavity, Incl with 1

1шт.

7

84192117

ELEC CONNECTOR

Hirschmann 1.2mm 2-way, Tank Heating Control, Female, Incl with 1

1шт.

7

84142302

SEAL

Cavity, Incl with 1

1шт.

7

87709655

BLANK-OFF PLUG

Incl with 1

1шт.

8

87703846

ELEC CONNECTOR

Deutsch HD Series 14-way, C14 Exhaust Harness, Female, Incl with 1

1шт.

9

87703474

ELEC CONNECTOR

Deutsch HD Series 21-way, P21 Instrument Panel, Male, Incl with 1

1шт.

10

87705969

ELEC CONNECTOR

Bosch JPT 3-way, Water in Fuel Sensor, Female, Incl with 1

1шт.

10

82035902

PLUG

Cavity, Incl with 1

1шт.

11

47703833

FUSE BOX

Engine

1шт.
