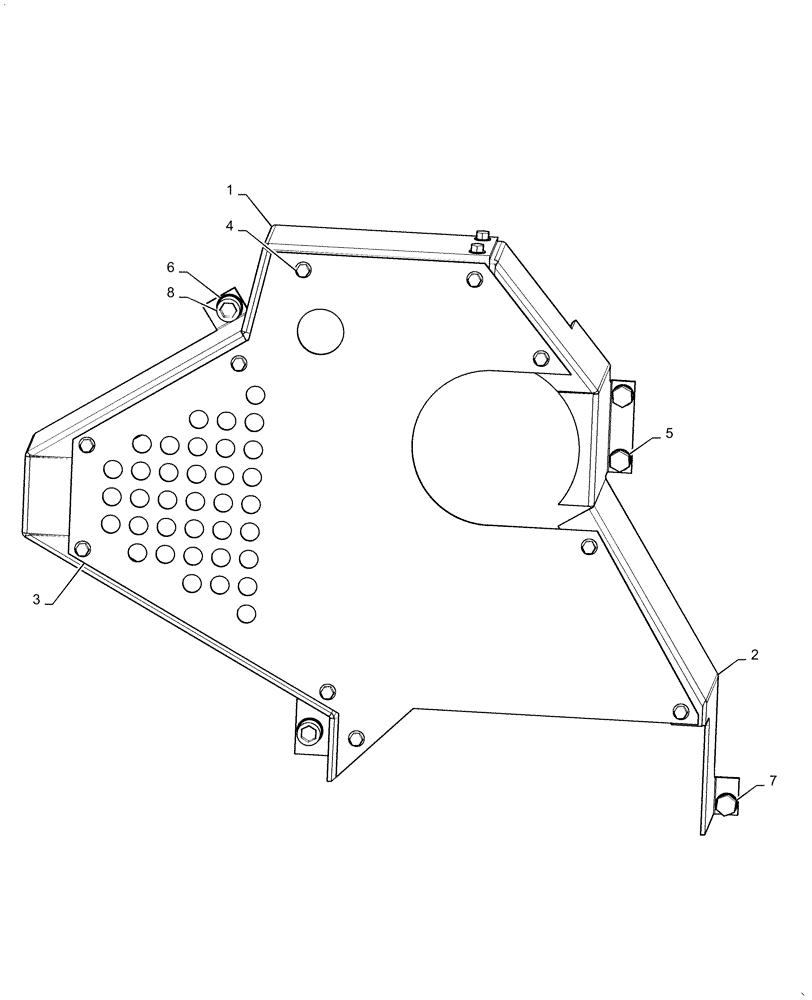

Запчасти Case IH 100A (10.414.BE) - BELT GUARD (10) - ENGINE

1

47599392

GUARD

RH, Belt

1шт.

2

47599393

GUARD

LH, Belt

1шт.

3

47599394

GUARD

Front, Belt

1шт.

4

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

12шт.

5

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

Split

3шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Split

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.
