Запчасти Case IH 100A (10.400.BE) - RADIATOR & COOLER (10) - ENGINE

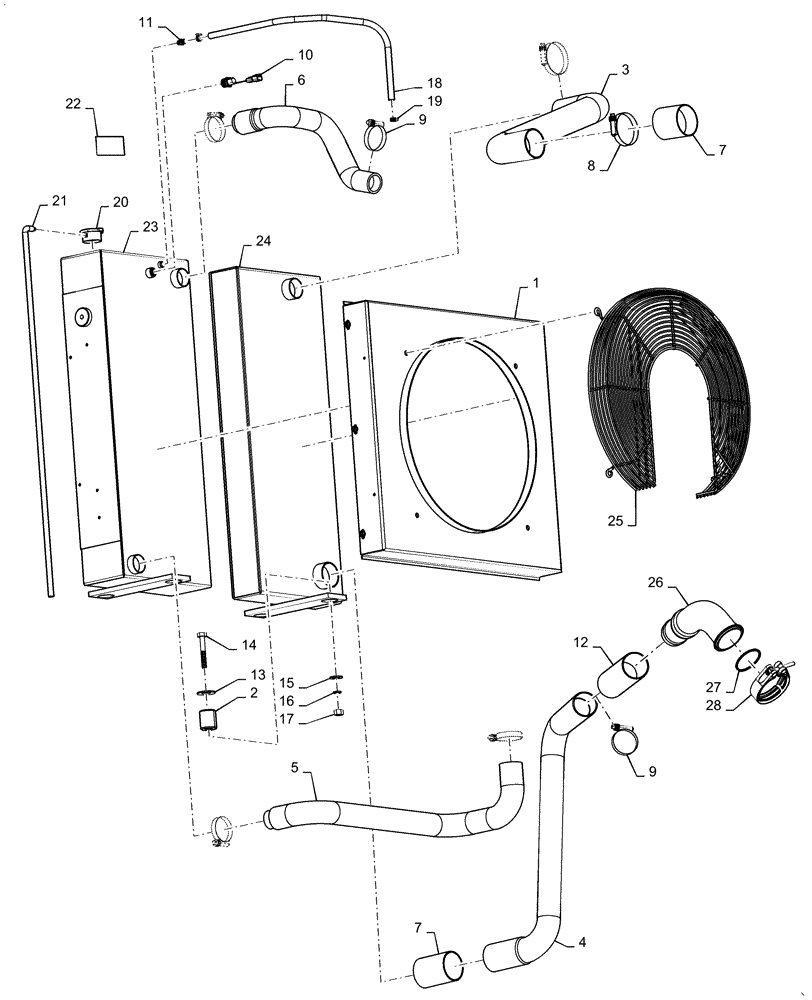

Схема запчастей Case IH 100A - (10.400.BE) - RADIATOR & COOLER (10) - ENGINE
6
10
7
22
14
18
28
21
15
12
2
4
7
8
1
25
13
24
16
17
23
5
20
9
27
11
26
3
9
19

Артикул

Название

Примечание

Количество

1

47703006

SHROUD

Fan

1шт.

2

84397039

ISOLATOR

Mount

4шт.

3

47598436

TUBE

CAC Upper

1шт.

4

47598437

TUBE

CAC Lower

1шт.

5

47598438

HOSE

Lower Radiator

1шт.

6

47598439

HOSE

Upper Radiator

1шт.

7

87405430

HOSE

Connecting

3шт.

8

87416749

CLAMP,2.75" - 3.62", Worm Gear

Hose

6шт.

9

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1.812"

6шт.

10

84134624

SENSOR

Coolant Level

1шт.

11

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

12

47726219

HOSE

CAC

1шт.

13

87591916

WASHER,0.53" ID x 2" OD x 0.18" Thk

Washer, .561" x 1.97"

4шт.

14

9818286

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

4шт.

15

87613183

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

280431

NUT,1/2"-13, G5

4шт.

18

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

1шт.

19

86625022

HOSE CLAMP,6.3mm - 15.7mm

2шт.

20

A170241

RADIATOR CAP

Coolant

1шт.

21

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

Overflow

1шт.

22

85821916

DECAL,50mm x 100mm H

Coolant Warning

1шт.

23

47703004

RADIATOR

Engine

1шт.

24

47703005

COOLER

Charge Air

1шт.

25

47703007

GUARD

Fan

1шт.

26

47764996

PIPE

1шт.

27

14459081

O-RING,1.737" ID x 0.103" Width

1шт.

28

84365315

CLAMP,68mm

1шт.

Выбрано товаров: 28
