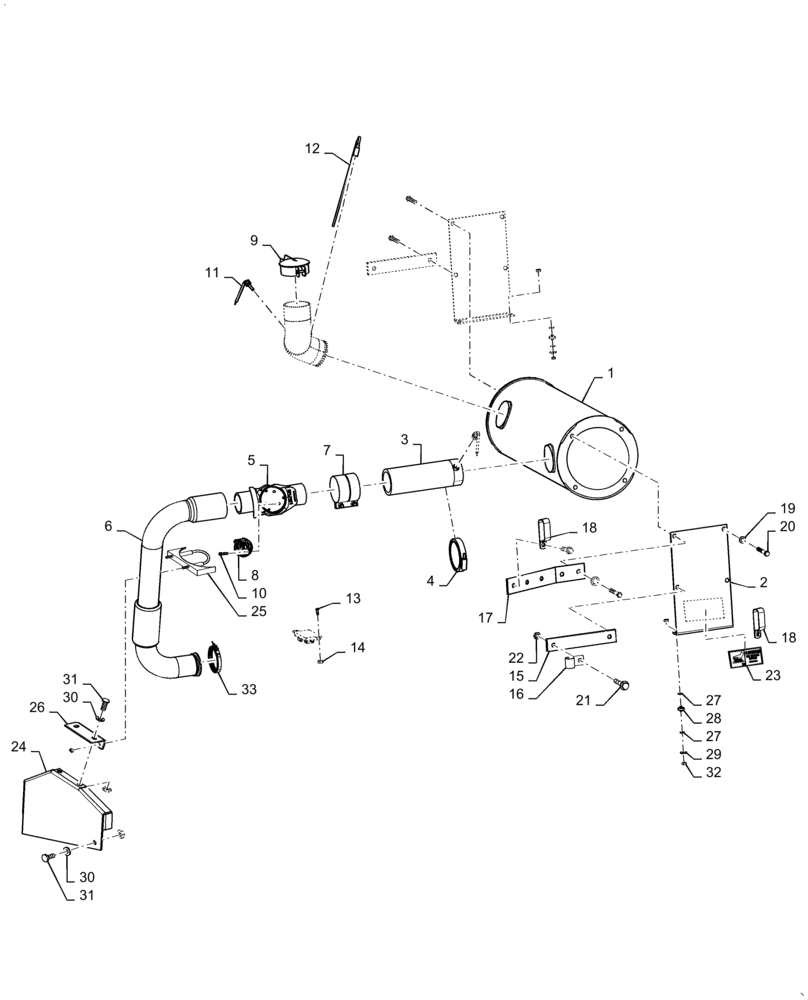

Запчасти Case IH 100A (10.254.AD[01]) - EXHAUST SYSTEM (10) - ENGINE

1

84298781

MUFFLER

Assy, SCR

1шт.

2

47773356

BRACKET

Muffler, Mount

2шт.

3

47598434

PIPE

Exhaust Mix To Muffler

1шт.

4

47748305

CLAMP

V-Band

1шт.

5

8047376

Urea Mixing

EXHAUST SYSTEM PIPE

1шт.

6

47598435

PIPE

Exhaust Turbo Out

1шт.

7

85821061

BRACKET

Clamp

1шт.

8

47511724

MODULE

DEF Dosing

1шт.

8

47511724R

REMAN-INJEC EMISSION

DEF Dosing

1шт.

8

47511724C

CORE-INJEC EMISSION

Return Number

1шт.

9

D33884

CAP

Rain

1шт.

10

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

3шт.

11

87482353

SENSOR

EGT Before/After SCR

2шт.

12

84422745

SENSOR

NOX Module

1шт.

13

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

2шт.

14

20332

LOCK NUT,#10-32, GB

2шт.

15

47722034

BRACKET

Sensor Wire Support

2шт.

16

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

17

47722038

BRACKET

DEF Line Support

1шт.

18

47722042

CLAMP

P Style, Long

1шт.

19

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

21

523292

BOLT,1/4" - 20 x 1.03" OAL

3шт.

22

523282

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

23

418242A3

WARNING DECAL,168mm x 88mm H

Hot Surface

2шт.

24

47764181

SUPPORT

EXH, Tube Clamp

1шт.

25

47764185

CLAMP

U-Bolt

1шт.

26

47764183

BRACKET

EXH, Tube

1шт.

27

86624178

LOCK WASHER,10.11mm ID x 25.02mm OD x 1.14mm Thk

8шт.

28

47764058

MOUNT

IPU Muffler ISO

4шт.

29

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

4шт.

30

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

6шт.

31

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

6шт.

32

247780

SERRATED NUT,Flg, USR, 3/8"-16

16шт.

33

A170467

CLAMP,72mm ID

Hose, 3.18 IN V-Band

1шт.
