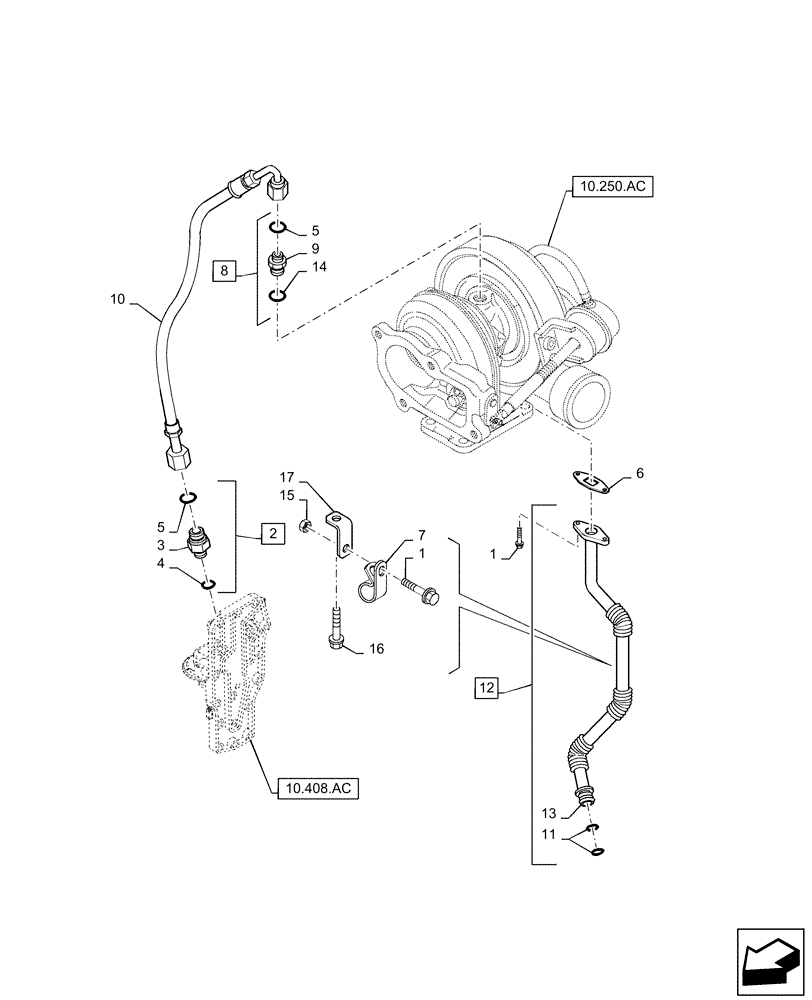

Запчасти Case IH 100A (10.250.AD) - TURBOCHARGER LUBE LINE (10) - ENGINE

1

2852101

FLANGE BOLT,Hex, M6 x 16mm

3шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

Incl 3 - 5

1шт.

3

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

Union, Incl with 2

1шт.

4

4895610

O-RING,2.2mm Thk x 9.3mm ID

Incl with 2

1шт.

5

4899108

O-RING,0.364mm ID x 0.07mm Width

Incl with 2, 8

2шт.

6

4899467

GASKET

Turbocharger Oil Drain

1шт.

7

4899519

CLAMP,M16, M6 Bolt

1шт.

8

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Incl 5, 9 - 10, 14

1шт.

9

4899120

HYD CONNECTOR,11/16" - 16 ORFS x M10 - 1.25 ORB

Male, Incl with 8

1шт.

10

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

Turbocharger Oil Supply, Incl with 8

1шт.

11

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

Incl with 12

2шт.

12

84496930

TUBE

Incl 11, 13

1шт.

13

84499112

TUBE

Turbocharger Oil Drain

1шт.

14

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Incl with 8

1шт.

15

2852197

FLANGE NUT,M6 x 1

1шт.

16

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

17

2830887

BRACKET

Drain Tube Support

1шт.
