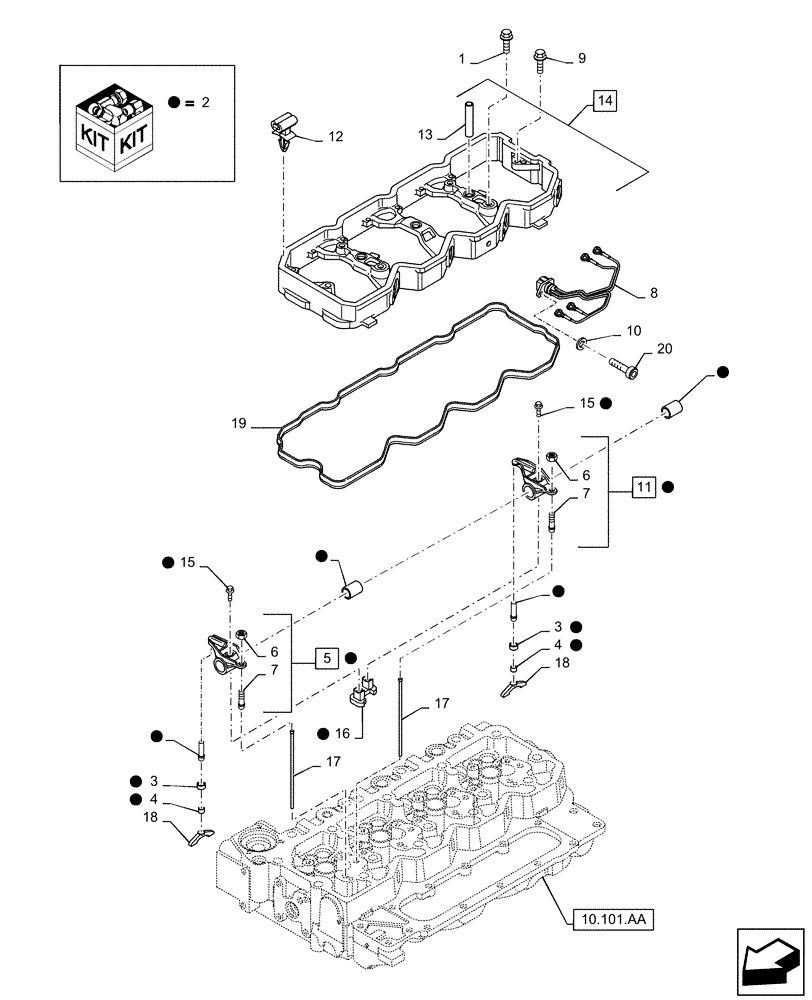

Запчасти Case IH 100A (10.106.AP) - ROCKER ARM & SHAFT (10) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

5шт.

2

2859460

ROCKER ARM

Incl 3 - 7, 11, 15 - 16

6шт.

3

2859464

RETAINER,10.79mm ID, 7.63mm ID

Incl with 2

2шт.

4

2859465

SOCKET,1.5mm ID x 11mm OD x 9mm L

Incl with 2

2шт.

5

2859462

ROCKER ARM

Incl with 2, Incl 6 - 7

1шт.

6

2859467

NUT,Hex, 3/8" - 24, RH

Incl with 2, 5

2шт.

7

2859468

ADJUSTMENT SCREW,3/8" - 24 x 23.85mm

Incl with 2, 5

2шт.

8

47401109

WIRE HARNESS

Injector

2шт.

9

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

10

2852776

WASHER,6mm ID x 11mm OD

6 x 11

2шт.

11

2859461

ROCKER ARM

Incl with 2

1шт.

12

2852428

WIRE CLAMP,6mm ID

Housing

4шт.

13

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

Incl with 14

3шт.

14

4899256

HOUSING

Rocker, Incl 13

1шт.

15

2856460

BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9

Incl with 2

2шт.

16

2859463

SUPPORT

Rocker Arm, Incl with 2

1шт.

17

4895031

PUSH ROD

Rocker

8шт.

18

2854530

BRIDGE

Rocker Arm

8шт.

19

2853535

GASKET,10.35mm Thk

Housing

1шт.

20

2852602

HEX SOC SCREW,M6 x 16mm

M6 x 16

2шт.
