Запчасти Case IH 100A (10.105.AG) - PISTON - ENGINE (10) - ENGINE

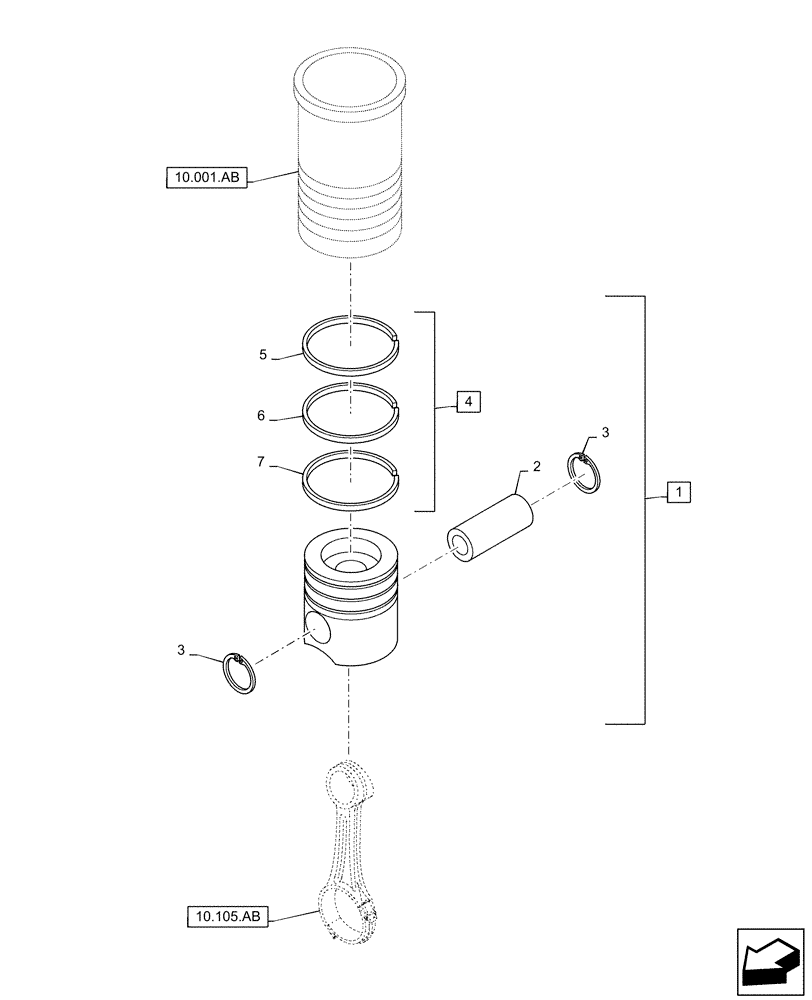

Схема запчастей Case IH 100A - (10.105.AG) - PISTON - ENGINE (10) - ENGINE
4
7
10.105.ab
3
2
3
5
6
10.001.ab
1

Артикул

Название

Примечание

Количество

1

84364065

PISTON

Standard, Incl 2 - 7

4шт.

1

84364066

PISTON

(+0.4), Incl 2 - 7

4шт.

1

84364067

PISTON

(+0.8), Incl 2 - 7

4шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

4шт.

3

2854030

SNAP RING,M40.8 OD

8шт.

4

84512790

PISTON ASSY

Ring Set, Standard, Incl 5 - 7

6шт.

4

84512829

PISTON ASSY +0.4

Ring Set, Incl 5 - 7

6шт.

5

2854603

PISTON RING

Sealing, Standard, Incl with 4

4шт.

5

2856713

PISTON RING

Sealing, (+0.4), Incl with 4

4шт.

5

2856714

PISTON RING

Sealing, (+0.8), Incl with 4

4шт.

6

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

Compression, Standard, Incl with 4

4шт.

6

2830159

PISTON RING,95.4mm ID x 104.4mm OD x 2.39mm Thk

Compression, (+0.4), Incl with 4

4шт.

6

2830160

PISTON RING

Compression, (+0.8), Incl with 4

4шт.

7

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

Scraper, Standard, Incl with 4

4шт.

7

2853875

OIL SCRAPER RING +0.,95.3mm ID x 104mm OD

Incl with 4

4шт.

7

2853876

PISTON RING

Scraper, (+0.8), Incl with 4

4шт.

Выбрано товаров: 16
