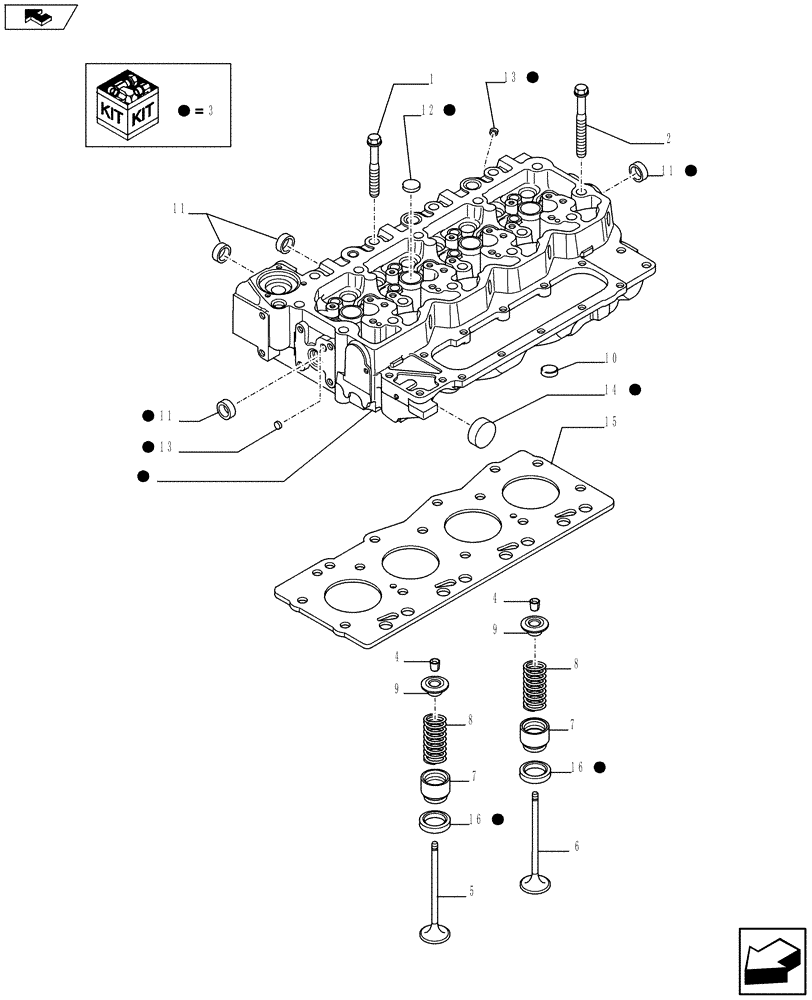

Запчасти Case IH 100A (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12 x 130

8шт.

2

4891025

SCREW,Flng, M12 x 1.75 x 150mm

M12 x 150

10шт.

3

2831266

CYLINDER HEAD,4 Cylinders

Incl 11 - 14, 16

1шт.

3

47507108R

REMAN-CYLINDER HEAD

Complete With Valves

1шт.

3

47507108C

CORE-HYD CYLINDER

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

Valve

32шт.

5

4895051

STD EXHAUST VALVE

Cylinder Head

8шт.

6

4895052

STD INLET VALVE

Cylinder Head

8шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

Valve

16шт.

8

4895073

VALVE SPRING

Intake and Exhaust

16шт.

9

4895074

CUP,18mm ID

Spring

16шт.

10

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

11

4895085

EXPANSION PLUG,25.74mm

Incl with 3

9шт.

12

4895089

PLUG,0.886" L

.886" OD, Incl with 3

7шт.

13

4895406

EXPANSION PLUG,9.8mm OD

Incl with 3

5шт.

14

4895407

EXPANSION PLUG,38.28mm OD

38.28 mm OD, Incl with 3

1шт.

15

2830706

CYLINDER HEAD GASKET,1.25mm Thk

SP=1,25

1шт.

15

2830707

CYLINDER HEAD GASKET,1.15mm Thk

SP=1,15

1шт.

16

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

Incl with 3

16шт.
