Запчасти Case IH PX85 (04-03) - ENGINE SHUTOFF SWITCHES, SPEED CONTROL, OIL LEVEL (04) - ELECTRICAL SYSTEMS

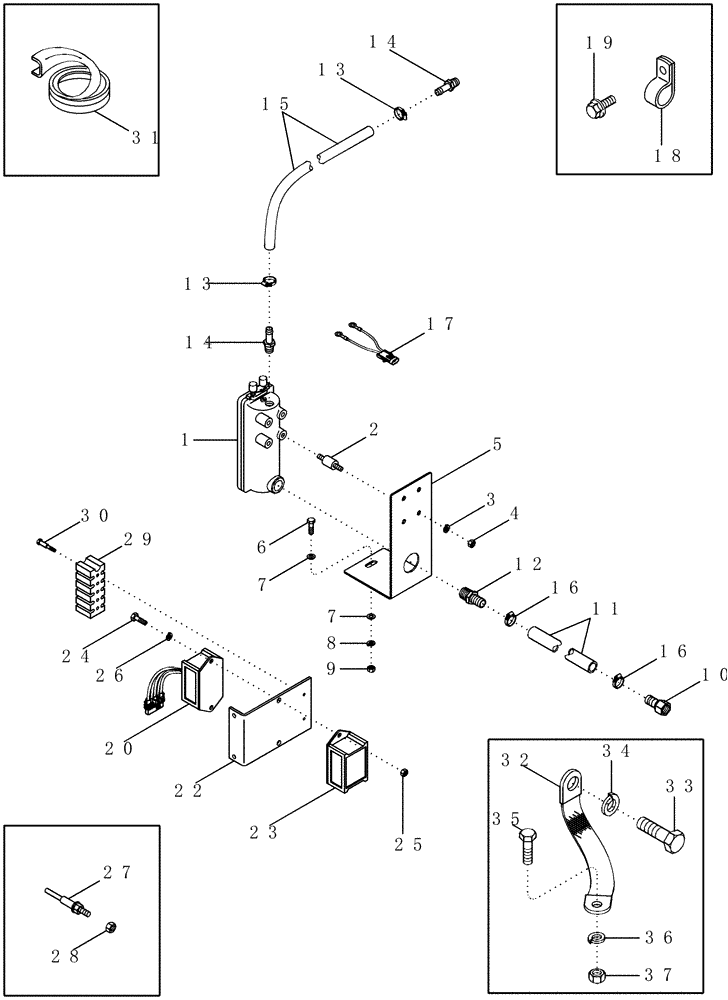

Схема запчастей Case IH PX85 - (04-03) - ENGINE SHUTOFF SWITCHES, SPEED CONTROL, OIL LEVEL (04) - ELECTRICAL SYSTEMS
25
11
13
6
12
14
16
24
30
28
26
4
29
17
2
19
20
22
32
3
34
13
18
35
36
14
8
1
31
15
23
7
27
37
10
7
5
16
33
9

Артикул

Название

Примечание

Количество

1

1347701C1

SWITCH ASSY

Oil Level, High/Low, Incl 2 - 4

1шт.

2

251203A1

MOUNT

Rubber, Shock

2шт.

3

492-11025

LOCK WASHER,1/4"

2шт.

4

425-104

NUT,1/4"-20, Cl 5

2шт.

5

1347702C1

BRACKET

Mounting, Switch

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

87448295

END FITTING

Straight, 5/8 Stem End x 3/4-16 female - 37 degrees flared

1шт.

11

NS

NOT SERVICED

HOSE, 5/8 ID x 16 in, Oil Gauge Supply

1шт.

Cut From 73200C2

1шт.

12

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

Straight, 5/8 x 1/2 PT

1шт.

13

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

14

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

Barbed, 1/8 PT x 3/8

2шт.

15

NS

NOT SERVICED

HOSE,3/8 ID x 16 in, Oil Gauge Vent

1шт.

Cut From 706670C1

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

17

87448292

WIRE HARNESS

Oil Level

1шт.

18

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

19

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1шт.

20

356565A1

MODULE

Overspeed Module

1шт.

21

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

2шт.

22

248951A1

BRACKET

Speed and Coolant Module

1шт.

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

23

380124A2

MODULE

Low Coolant Module

1шт.

24

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

25

225-14108

NUT,#8-32

2шт.

26

492-11008

LOCK WASHER,#8

2шт.

27

240548A1

SENSOR

Low Coolant

1шт.

28

225-30210

NUT,#10-32, Stainless

2шт.

29

240667A1

TERMINAL CONNECTOR,2 - 12 Pin, 8 - 24 SAE

Terminal, 6 Posts

1шт.

30

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

31

87421838

GROMMET

Edgeing

1шт.

32

391452A1

CABLE

Ground

1шт.

33

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

34

892-11012

LOCK WASHER,M12

1шт.

35

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

300744A1

KIT

Low Coolant Module, Inc. 23, 28, 32 - 37

1шт.

Выбрано товаров: 41
