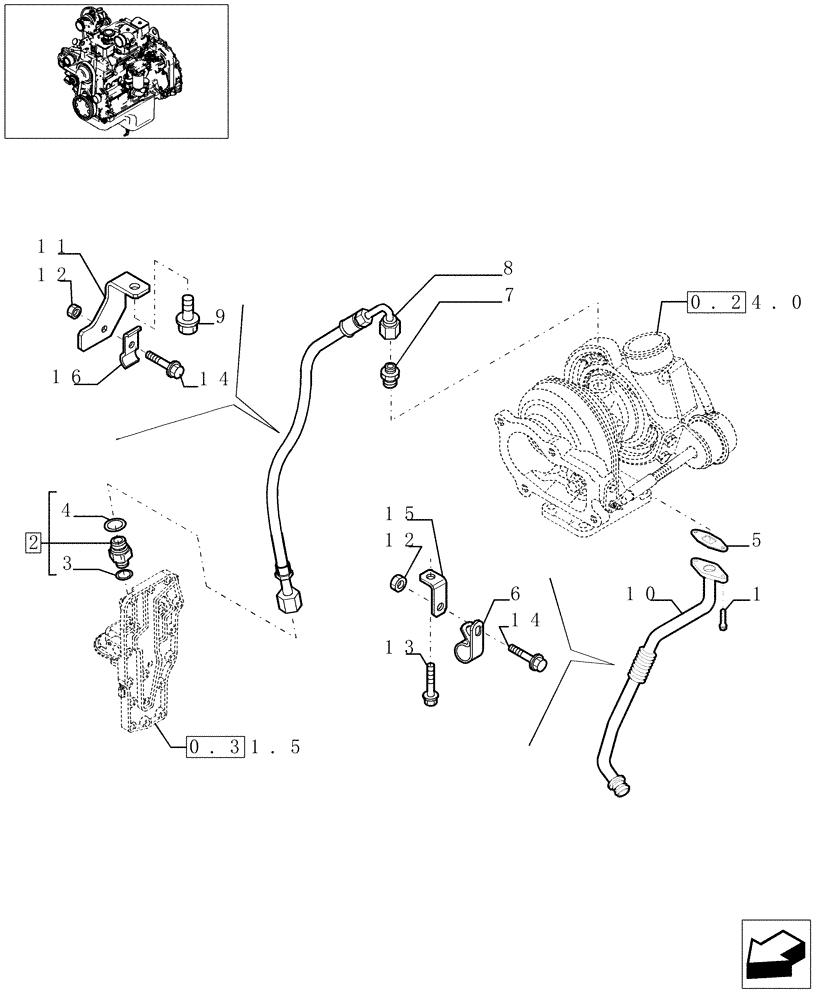

Запчасти Case IH PX85 (0.30.5[01]) - PIPING - ENGINE OIL (504036430) (02) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

2852229

HYD CONNECTOR,M10 x 1.25 x 9/16"-18

- ASSY

1шт.

8

2852256

TUBE

1шт.

9

16587924

SCREW,Hex Flg, M12 x 25mm, Cl 8.8

2шт.

10

504033527

PIPE

1шт.

11

2852563

BRACKET

1шт.

12

2852197

FLANGE NUT,M6 x 1

M6

2шт.

13

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

8x1.25x16

1шт.

14

16585724

BOLT,M6 x 16mm, Cl 8.8

M6x16

2шт.

15

2852196

BRACKET

1шт.

16

2852258

CLAMP

1шт.
