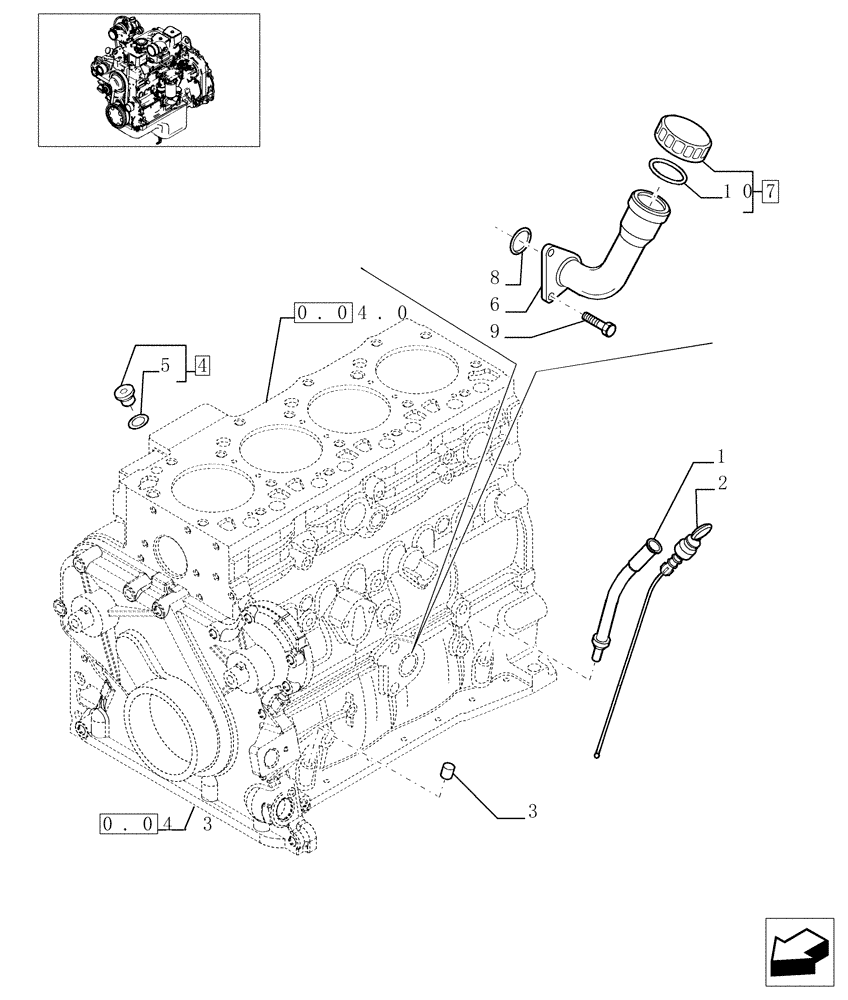

Запчасти Case IH PX85 (0.27.0[01]) - ENGINE OIL DIPSTICK - (504063272 - 504087721) (02) - ENGINE

1

2852698

TUBE ASSY.,106, 93 mm Length

- OIL LEVEL

1шт.

2

2852762

DIPSTICK

DIPSTICK

1шт.

3

4899036

PLUG

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

504087621

ELBOW, Oil Fill

NECK FILLER

1шт.

7

2853410

FILLER CAP,Female

CAP-ASSY

1шт.

8

14458681

O-RING,1.487" ID x 0.103" Width

1шт.

9

16587924

SCREW,Hex Flg, M12 x 25mm, Cl 8.8

M6X18

2шт.

10

2853412

O-RING,0.21" Thk x 1.475" ID

SEAL

1шт.
