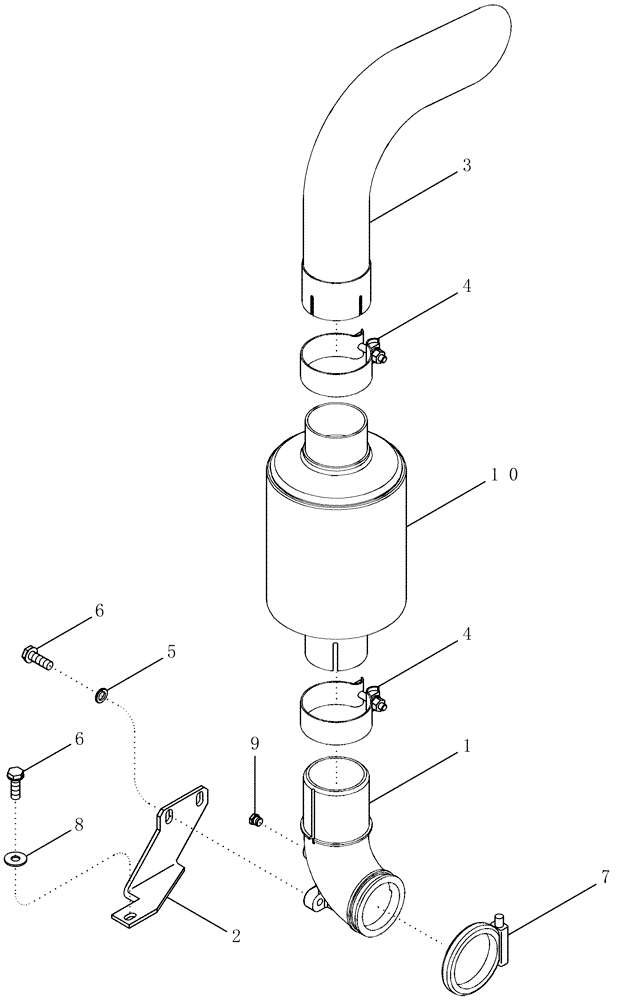

Запчасти Case IH PX85 (02-12) - EXHAUST SYSTEM - WITH SPARK ARRESTER - PX85 (02) - ENGINE

1

87416402

ELBOW

1шт.

2

87446469

BRACKET

1шт.

3

87452275

EXHAUST SYSTEM PIPE

Extension, with Hood

1шт.

3

87452316

EXHAUST SYSTEM PIPE

Extension, without Hood

1шт.

4

190981A1

CLAMP,76.2mm ID

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

7

A170467

CLAMP,72mm ID

1шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

9

217-86

PLUG,Hex Hd, 1/4"-18, Brass

1шт.

10

A135430

ARRESTER

Spark

1шт.

87452826

EXHAUST SYSTEM PIPE

Arrester, Spark, Inc. 3, 4, 10

1шт.
