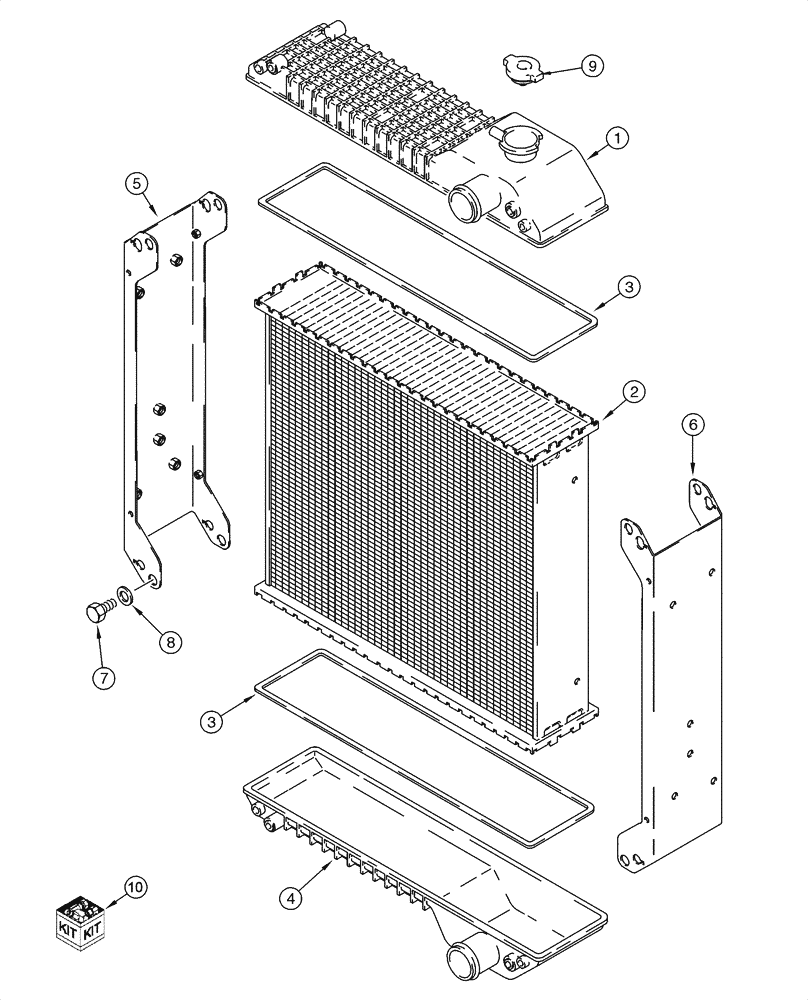

Запчасти Case IH PX85 (02-02) - RADIATOR ASSY - 4 ROW (02) - ENGINE

234876A2

RADIATOR

4 Row, Inc. REF 1 - 9

1шт.

1

175161A1

TANK

Tank, Top

1шт.

2

181148A1

CORE

Radiator Core, 4 Row

1шт.

3

175163A1

GASKET,3.3mm Thk

Upper And Lower

2шт.

4

175162A1

RESERVOIR

Tank, Bottom

1шт.

5

175164A1

SUPPORT

Outer, LH

1шт.

6

175165A2

SUPPORT

Outer, RH

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

A170241

RADIATOR CAP

15 psi

1шт.

10

226586A1

PACKAGE,SERVICE

Radiator

1шт.
