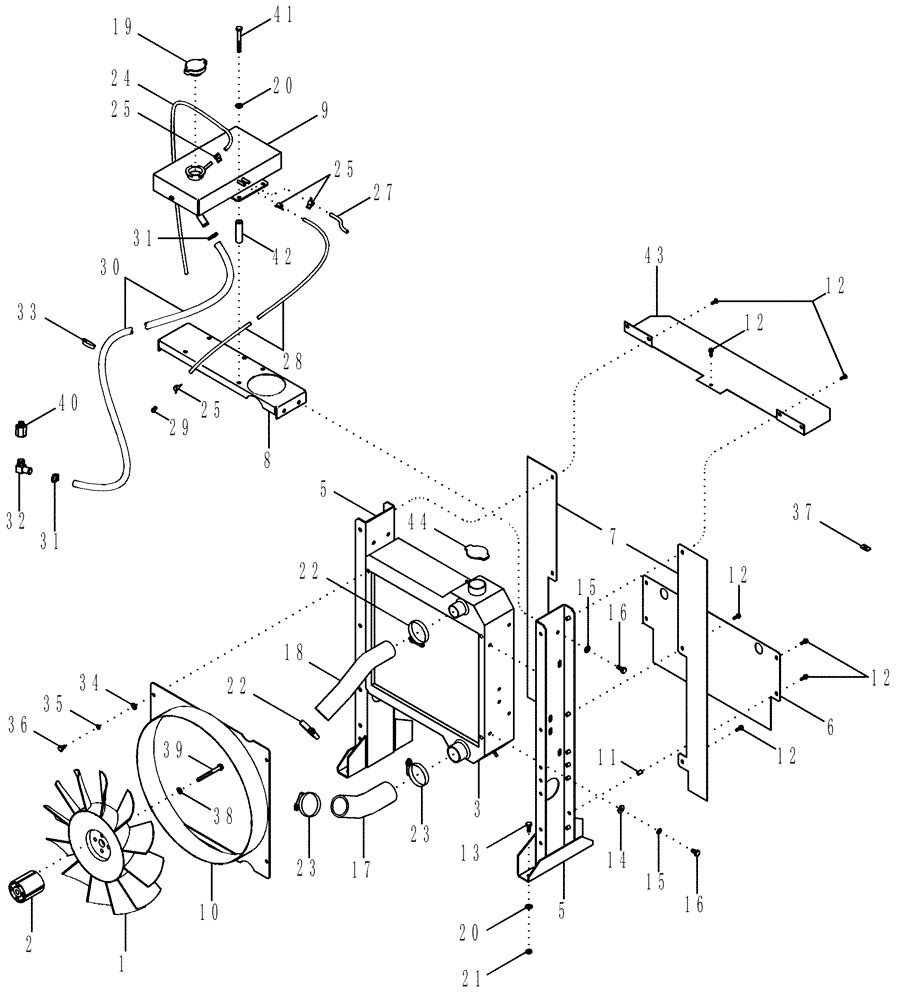

Запчасти Case IH PX85 (02-01) - COOLING SYSTEM (02) - ENGINE

1

87405214

FAN

12 Blade, 19-11/16 in Diameter

1шт.

2

A189318

SPACER

Fan

1шт.

3

239739A2

RADIATOR

1шт.

See Figure 02-02

1шт.

5

87441720

BRACKET

Radiator Support

2шт.

6

87441977

BAFFLE

1шт.

7

87441978

BAFFLE

2шт.

8

87441981

BRACKET

Tank, Deaerator

1шт.

9

87422438

TANK

Deaeration

1шт.

10

186433A1

SHROUD

Fan

1шт.

11

87441708

NUT

Nutsert, 1/4

7шт.

12

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

11шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

15

892-11010

LOCK WASHER,M10

8шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

17

87416806

HOSE,57.50 mm ID, 58.00 mm ID x 266.00 mm, SAE J20, SAE 20R4 CLASS D1

Lower

1шт.

18

87416805

HOSE,44.50 mm ID, 45.00 mm ID x 284.60 mm, SAE J20, SAE 20R4 CLASS D1

Upper

1шт.

19

A170241

RADIATOR CAP

15 PSI

1шт.

20

492-11038

LOCK WASHER,3/8"

20шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

23

L115548

CLAMP,57.15mm - 79.38mm

Hose

2шт.

24

87442013

HOSE,80.00 mm

36 inch

1шт.

25

J923527

CLAMP

Hose, 14 mm

5шт.

26

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

(12.7 mm)

3шт.

27

87442014

HOSE,745.00 mm

12 inch

1шт.

28

277644A1

HOSE

24 inch

1шт.

29

241173A1

FITTING

Orifice, 0.120 in

1шт.

30

322028A1

HOSE

36 inch

1шт.

31

J937613

HOSE CLAMP

2шт.

32

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

Elbow, 90 degree, 3/4 stem end x 1/2 inch PT

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

35

892-11008

LOCK WASHER,8mm ID

4шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

37

NSS

NOT SOLD SEPARAT

NUT, Weld, 3/8

12шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

39

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

4шт.

40

81465471

DRAINCOCK/TAP SUPPLY

1шт.

41

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

42

87441951

TUBE SPACER

Dearation Tank

4шт.

43

87441973

BAFFLE

Upper Air

1шт.

44

400586R1

RADIATOR CAP

1шт.
