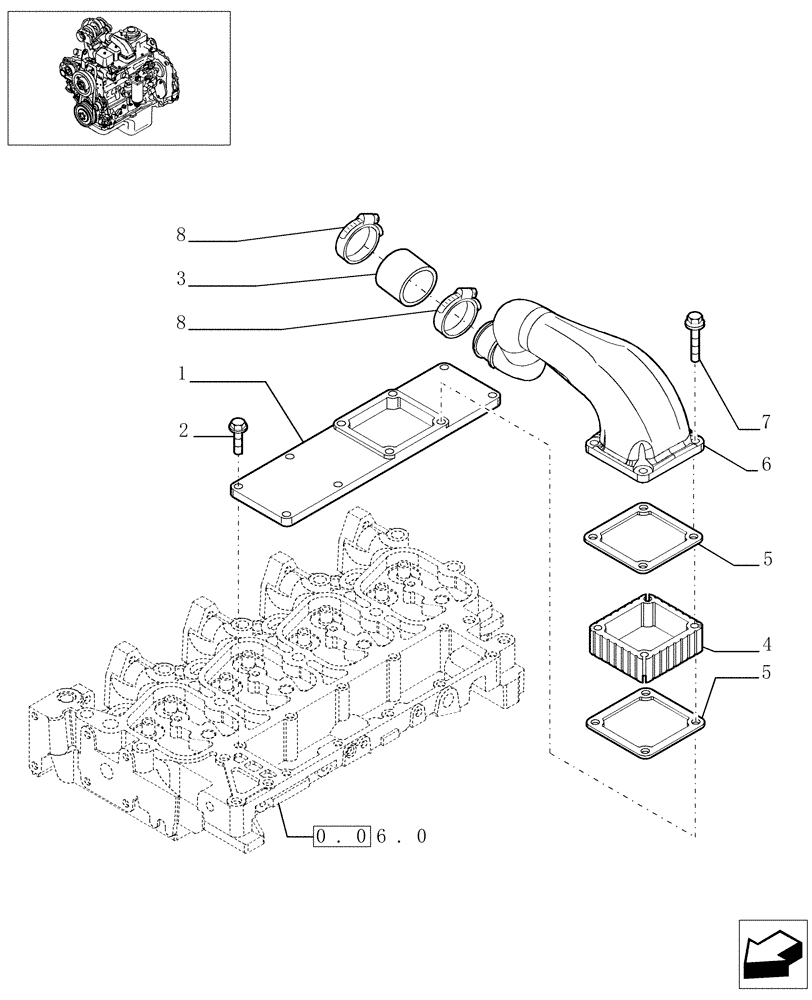

Запчасти Case IH PX85 (0.07.1/1[01]) - INTAKE MANIFOLD - PX85 - (504064864-504053926-4890349) (02) - ENGINE

1

504064865

COVER

1шт.

2

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

6шт.

3

2852029

HOSE,50mm ID x 64mm L

1шт.

4

4895648

SPACER

1шт.

5

4899921

GASKET,1.2mm Thk

2шт.

6

2853075

ELBOW,330, 101 mm Length

1шт.

7

16592624

FLANGE BOLT,Hex, M8 x 80mm, Cl 8.8

M8X80

4шт.

8

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.
