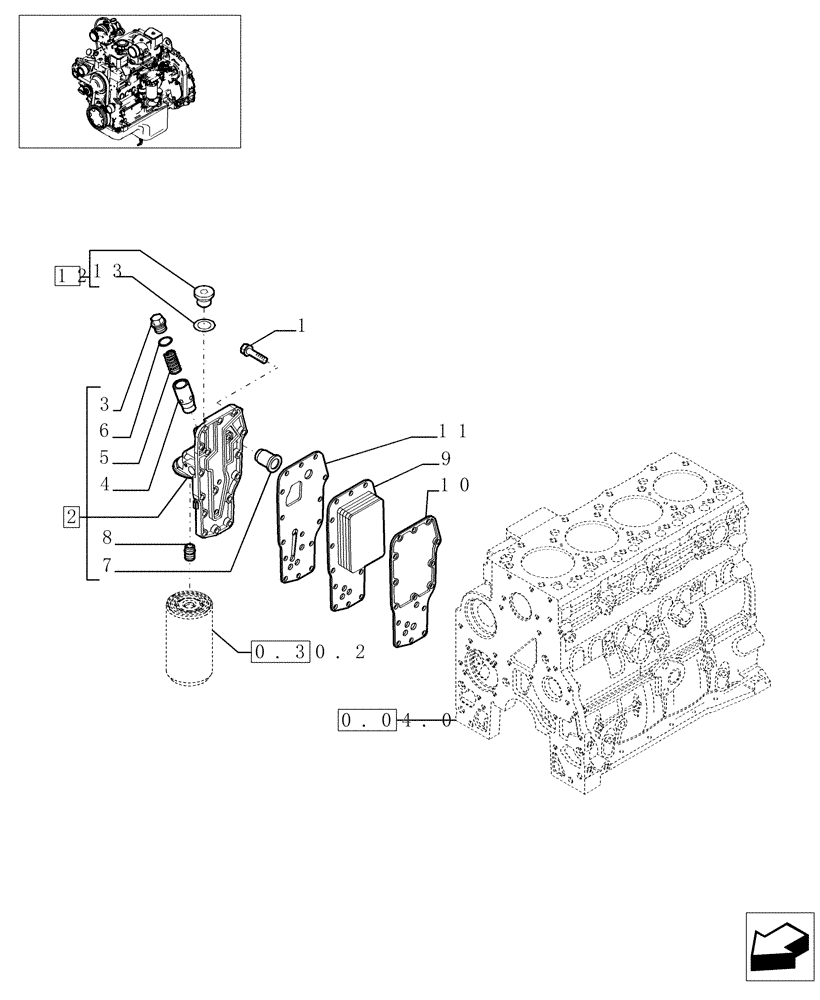

Запчасти Case IH PX70 (0.31.5[01]) - HEAT EXCHANGER - ENGINE - PX70 - (504084326) (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

4892774

FILTER HEAD

- ASSY

1шт.

3

4895043

PLUG

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

4896406

HEAT EXCHANGER

1шт.

10

2830559

GASKET,0.5mm Thk

1шт.

11

4896409

GASKET,1.55mm Thk

1шт.

12

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy

1шт.

13

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.
