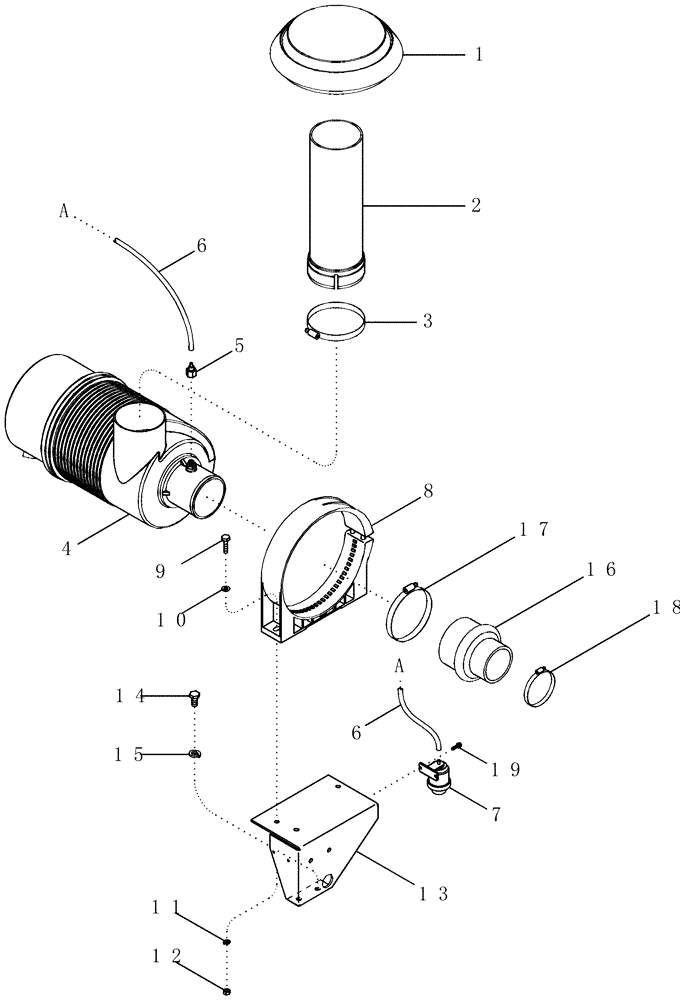

Запчасти Case IH PX70 (02-03) - AIR CLEANER AND MOUNTING - PX70 (02) - ENGINE

1

A170235

CAP

ASSY., Inlet Stack

1шт.

2

308897A1

EXTENSION

Inlet Stack

1шт.

3

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

4

236292A1

CLEANER

ASSY., Air, 8 in

1шт.

See Figure 02-05

1шт.

5

D36264

FITTING

Filtered, Air Restriction Indicator

1шт.

6

87441806

HOSE

Air Restriction Indicator, 5/32 ID x 16 in

1шт.

7

533917C2

GAUGE

Air Restriction

1шт.

8

226500A1

SUPPORT

Air Filter Housing

1шт.

9

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

10

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

11

492-21031

LOCK WASHER,5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

2шт.

13

87456446

BRACKET

Mounting

1шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Mounting Bracket

2шт.

15

892-11012

LOCK WASHER,M12

2шт.

16

S83126

ADAPTER

Tube, 3-1/2 to 3 in

1шт.

17

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

18

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2-13/16 - 3-3/4

1шт.

19

280-14412

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

2шт.
