Запчасти Case IH PX240 (03-03) - FUEL FILTER - PUMP, TRANSFER (03) - FUEL SYSTEM

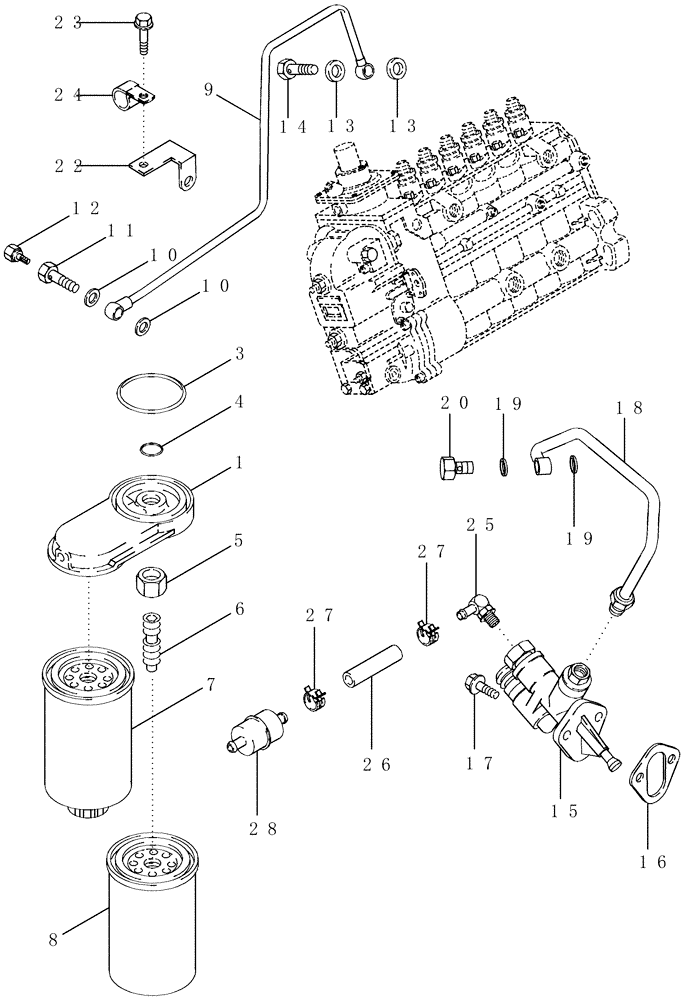

Схема запчастей Case IH PX240 - (03-03) - FUEL FILTER - PUMP, TRANSFER (03) - FUEL SYSTEM
16
26
19
27
14
10
23
6
19
24
27
18
5
9
12
17
8
1
7
3
13
13
20
4
28
22
10
25
11
15

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

6a

A77470

SEPARATOR

Kit, Not Illustrated, Incl. 7, 8

1шт.

7

J930942

SEPARATOR

1шт.

8

J931063

FUEL FILTER

1шт.

9

J930766

FUEL TUBE,8 mm OD x 468.4, 103.5 mm L

1шт.

10

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,27 mm

2шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

15

J936316

FUEL PUMP

1шт.

16

J939258

GASKET,1.21mm Thk

1шт.

17

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

2шт.

18

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

19

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,27 mm

2шт.

20

J916361

BANJO BOLT

M12 x 24

1шт.

22

J930375

BRACKET

1шт.

23

283264A1

BOLT

M8 x 14; 10.9

1шт.

24

J914711

CLIP

1шт.

25

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

90 Degree, 1/2 stem end x PT

1шт.

26

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

1шт.

27

196252A1

CLAMP

Adjustable

2шт.

28

194199A1

FUEL FILTER

Fuel, In-line

1шт.

Выбрано товаров: 27
