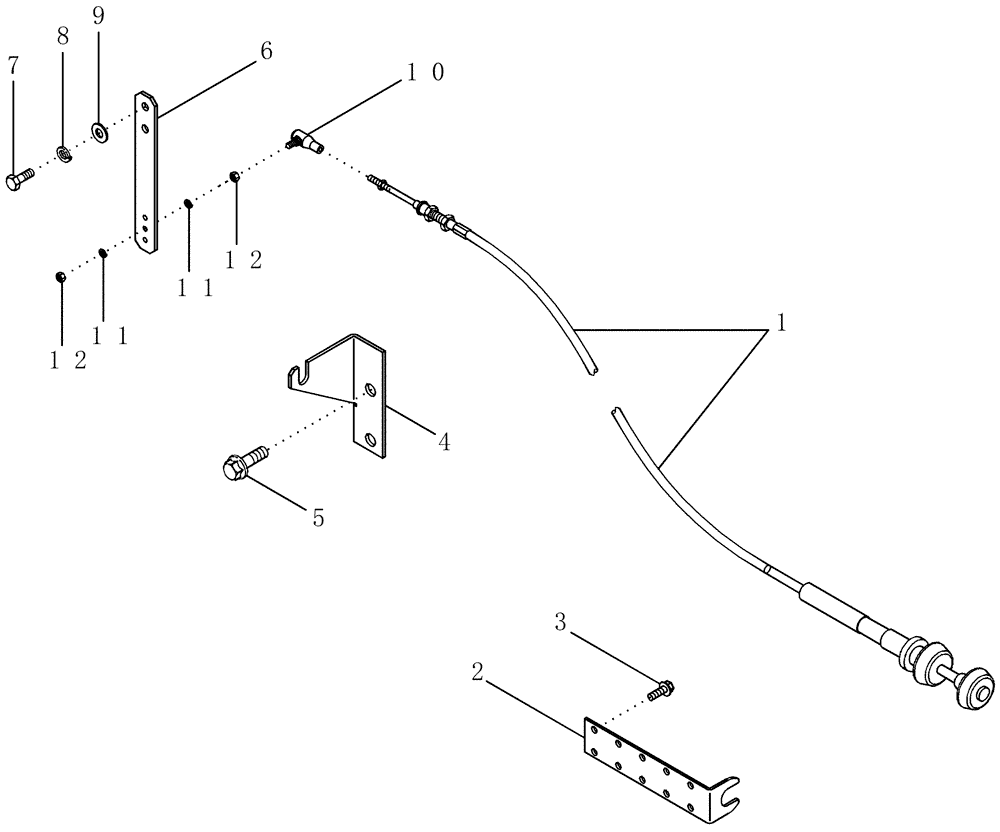

Запчасти Case IH PX215 (03-05) - THROTTLE CONTROL (03) - FUEL SYSTEM

1

248832A1

CABLE

Throttle Control

1шт.

2

102406A1

BRACKET

Mounting, Throttle Cable

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

4шт.

4

87421464

BRACKET

Mounting, Throttle Cable

1шт.

5

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

6

87421463

BRACKET

Throttle Lever

1шт.

7

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

8

892-11006

LOCK WASHER,M6

2шт.

9

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

10

310484C91

BALL JOINT

1шт.

11

492-11010

LOCK WASHER,#10

2шт.

12

225-14210

NUT,#10-32

2шт.
