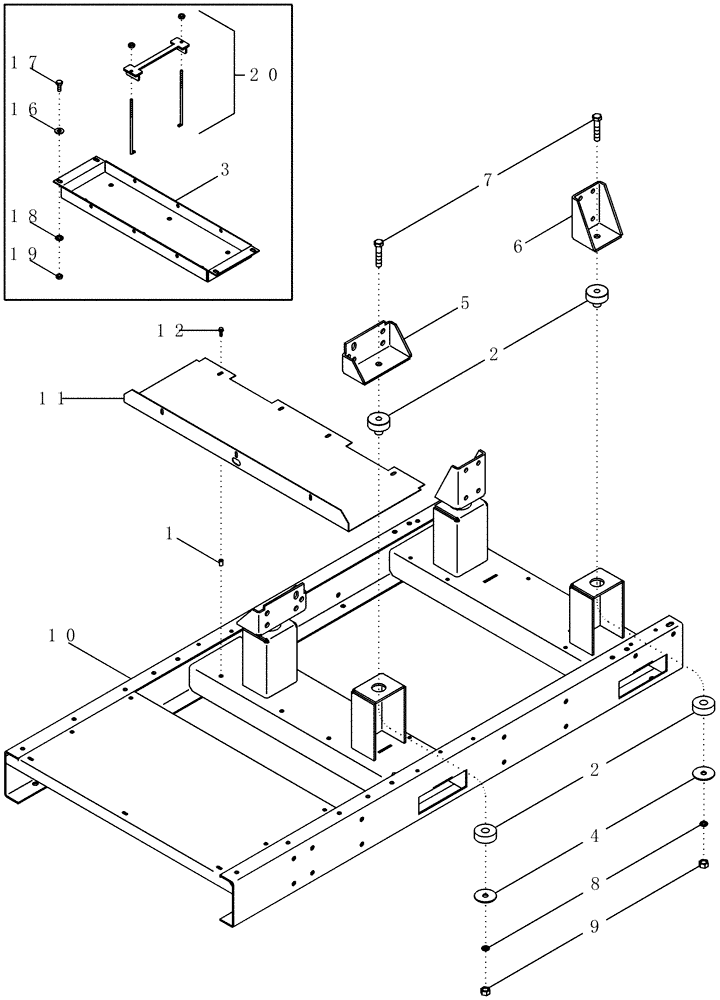

Запчасти Case IH PX190 (09-03) - ENGINE MOUNT (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

NUT, 1/4

19шт.

2

87419464

ENGINE MOUNT

4шт.

3

87421467

TRAY

Battery

1шт.

4

L78455

WASHER

Flat, 21/32 x 3 x 3/16 in, Hardened

4шт.

5

87419462

ENGINE MOUNT

2шт.

6

87419463

ENGINE MOUNT

2шт.

7

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

8

492-21062

LOCK WASHER,5/8"

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

87419364

FRAME ASSY

1шт.

11

87419465

BAFFLE

1шт.

12

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

7шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

14

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

12шт.

15

892-11012

LOCK WASHER,M12

12шт.

16

495-81125

WASHER,3/8" x 3/4" x .054"

4шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

18

495-21038

WASHER,5/16"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

87424416

KIT

Battery Hold Down

1шт.
