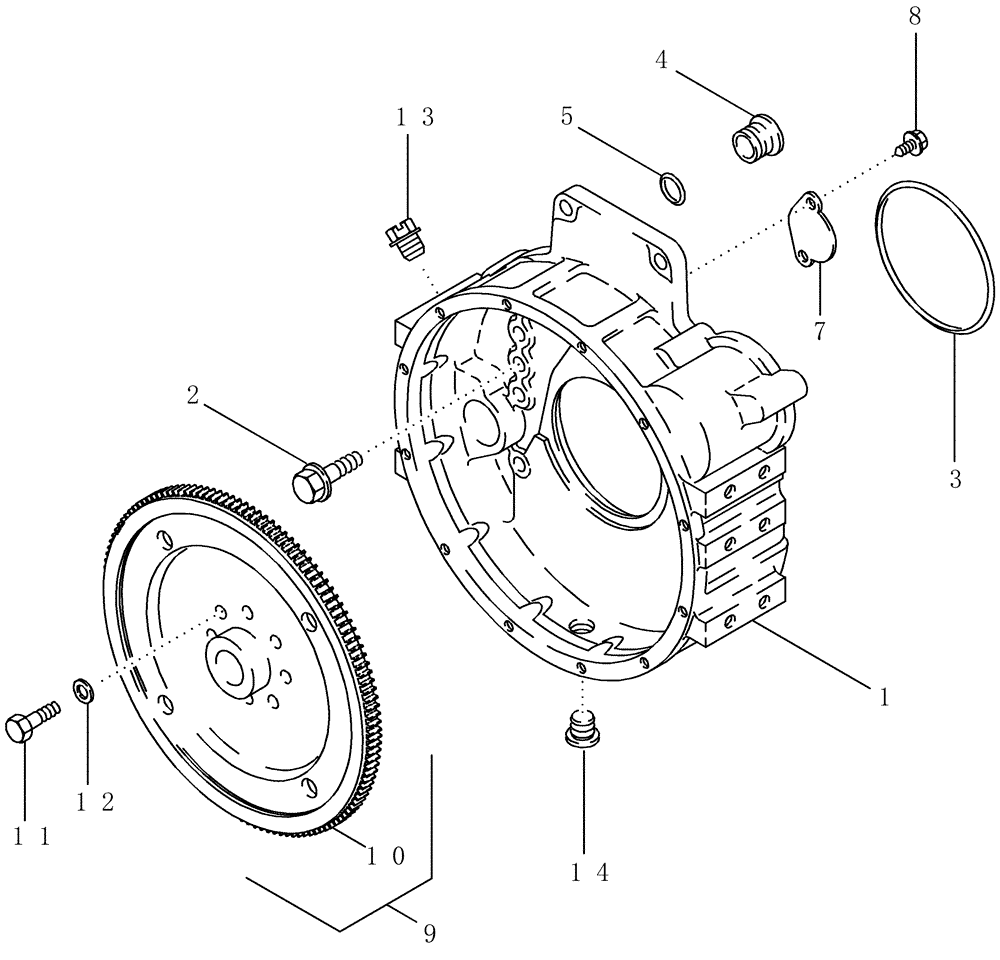

Запчасти Case IH PX190 (02-23) - FLYWHEEL AND HOUSING (02) - ENGINE

1

J908799

HOUSING

Flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

4

J910248

PLUG

Inc. 5

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

7

J925234

PLATE

1шт.

8

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

9

J936822

FLYWHEEL WITH GEAR

Ring, Inc. 10

1шт.

10

J905427

GEAR

Ring

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

13

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.
