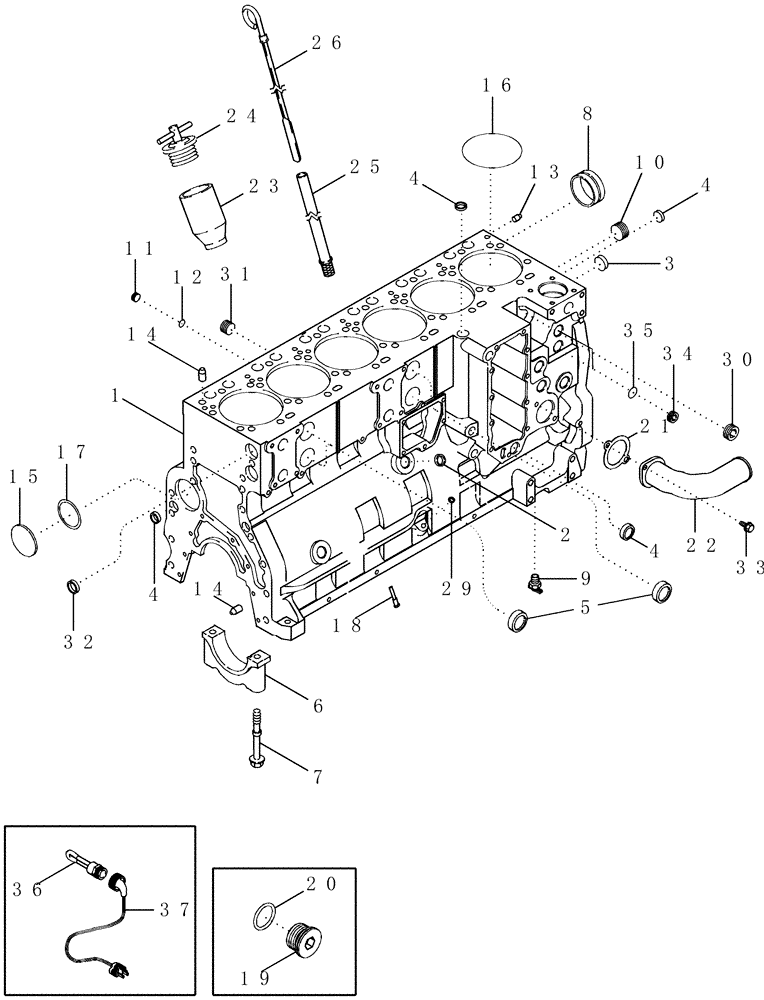

Запчасти Case IH PX190 (02-20) - CYLINDER BLOCK (02) - ENGINE

86992122

ENGINE

Engine Assy., Complete - Order 450560A1

1шт.

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe.

1шт.

PX190

1шт.

86992122C

CORE-EPA ENGINE

Return Part Number

1шт.

447415A1

ENGINE

Engine Assy., Complete - Order 450560A1

1шт.

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe.

1шт.

PX215

1шт.

403403A1

ENGINE

Assy., Complete - Order 450560A1

1шт.

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe.

1шт.

PX240

1шт.

403403A1

ENGINE

1шт.

403403A1C

CORE-ENGINE

Return Part Number

1шт.

450560A1

BASIC ENGINE

1шт.

See Note, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

47466034R

REMAN-BASIC ENGINE

Reman for New P/N 450560A1

1шт.

47466034C

CORE-BASIC ENGINE

Return Part Number

1шт.

A78041

CYLINDER BLOCK

Short, Inc. 1 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

87400266

REMAN-SHORT ENGINE

Reman for New P/N A78041

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number, Short Block

1шт.

1

J939313

BASIC BLOCK

Stripped, Also Order 449019A1, Inc. 3 - 8

1шт.

2

J920706

PLUG

22 mm

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

J936058

BEARING CAP

7шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

See Figure 02-19

1шт.

449019A1

PACKAGE,SERVICE

Includes 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4 PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

6шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J678921

PLUG

14 mm, Inc. 20

2шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

87413907

CONNECTION

Water Inlet

1шт.

23

J921068

TUBE,35.13 - 52.39 mm OD x 180 mm L

1шт.

24

A77424

FILLER CAP

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

1шт.

26

J937422

DIPSTICK

1шт.

29

J943808

PLUG

13 mm

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

32

J920443

PLUG

30 mm

2шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Inc. 35

1шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120 Volt, Inc. 36 - 37

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

310494A1

KIT

Coolant Heater, 240V, Inc. 36 - 37

1шт.

36

J913112

WIRE HARNESS

305 mm (12")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

A78039

ENGINE OVERHAUL KIT

Not Illustrated

1шт.

See Figure 02-21

1шт.
