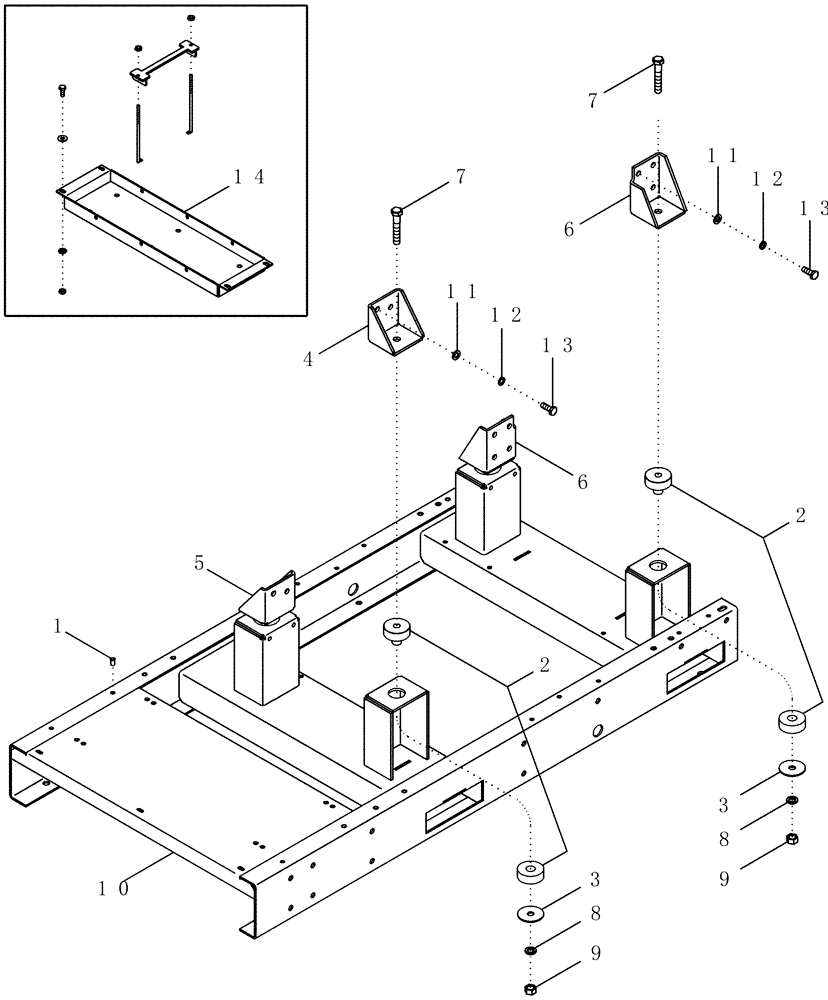

Запчасти Case IH PX170 (09-03) - ENGINE MOUNT (09) - CHASSIS/ATTACHMENTS

1

87441708

NUT

10шт.

2

87442333

ISOLATOR

4шт.

3

CASD35009

WASHER,16.67mm ID x 63.5mm OD

Flat, Special, 5/8 in, Hardened

4шт.

4

87441710

ENGINE MOUNT

1шт.

5

87441711

ENGINE MOUNT

1шт.

6

87441712

ENGINE MOUNT

2шт.

7

428-1052

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 8

4шт.

8

495-21069

WASHER,5/8"

4шт.

9

429-1010

NUT,5/8"-11, G8

4шт.

10

87442987

FRAME ASSEMBLY

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

12

892-11012

LOCK WASHER,M12

12шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

14

87441982

BATTERY TRAY

1шт.
